1/3HP LEESON 1800RPM 56 DP 3PH MOTOR E103017.00

LEESON 100028.00 and 103017.00 has been superseded by E103017.00

Catalog Number:  E103017.00
Model Number:  C4T17DH46A
Description:  1/3HP,1800RPM,56,DP,3PH,60HZ,WATTSAVER
Ship Weight:  22 lbs.

DP Models: For use where water and dust exposure is moderate. Ideally suited for use on pumps, compressors, blowers, fans, and other direct or belt-driven applications.

Features:

  • Premium efficient
  • 5/8" shaft output diameter
  • Durable rolled steel frame
  • High-quality ball bearings
  • Easy-to-read nameplate
  • UL Recognized Component Listing and CSA approval.
  • 3 year warranty
  • Non USA Manufactured, MX
Volts 230 Volts 460 Volts 190/380
F.L. Amps 1.2 F.L. Amps .6 F.L. Amps 1.4/.7
S. F Amps 1.3 S. F Amps .66 S. F Amps 1.55/.77
RPM 1800 Hertz 60/50
HP 1/3 Duty CONTINUOUS TYPE TD
KW 0.25 Model # C4T17DH46A
Frame S56 Serv. Factor 1.25 Phase 3
Max Amb 40 Design B Code M
Insul Class F Protection NOT Therm.Prot. A-A56227-64
Eff 100% 73.4 Eff 75%   PF 70.6
UL Y-(LEESON UL REC) CSA Yes Bearing OPE 6203
CC Number EXEMPT CE Yes Bearing PE 6203
Load Type   Inverter Type   Speed Range NONE
Motor Wt. 22.2 LB Enclosure DP Lubrication STANDARD
Nameplate 10000418-001-001 Mounting RIGID Rotation REV
Assembly   Shaft Dia.   Ext. Diag. A-EE7308T
Cust Part No   Outline A-031620-750 Ext. Diag2

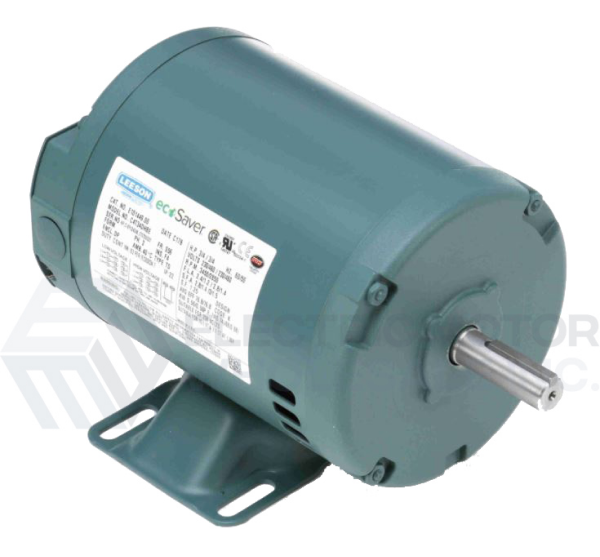

1/3HP LEESON 1800RPM 56 DP 3PH MOTOR E103017.00
Click Image to Enlarge
Image for quick reference only
Manufacturer Part Number: E103017.00
Stock # E103017
Price: $185.00
Compare At: $449.00
