1/4HP LEESON 1725RPM 56 DP 3PH MOTOR 100027.00

LEESON 100027.00 has been superseded by E100027.00

Catalog Number:  100027.00
Model Number:  C4T17DH1E
Description:  1/4HP,1725RPM,56,DP,3PH,60HZ
Ship Weight:  19 lbs.

APPLICATIONS: For use where water and dust exposure is moderate. Ideally suited for use on pumps, compressors, blowers, fans, and other direct or belt-driven applications.


  • EPACT efficient rating
  • Durable rolled steel frame
  • 5/8" shaft output diameter
  • High-quality ball bearings
  • Inverter-rated
  • Shielded ball bearings for direct coupled applications
  • Continuous duty
  • Easy-to-read nameplate
  • UL Recognized Component Listing and CSA certified
  • Warranty – 12 months from date of first use or 18 months from date of manufacture, whichever comes first.
  • Non USA Manufactured, MX
Volts 208-230 Volts 460 Volts
F.L. Amps 1.2-1.4 F.L. Amps .7 F.L. Amps
S. F Amps   S. F Amps   S. F Amps
RPM 1800 Hertz 60
KW .187 Model Number C4T17DH1E
Frame S56 Serv. Factor 1.0 Phase 3
Max Amb 40 Design B Code M
Insul Class B Protection NOT Therm.Prot.
Eff 100% 58 Eff 75%   PF 59
UL Y-(LEESON UL REC) CSA Yes Bearing OPE 6203
CC Number   CE   Bearing PE 6203
Load Type   Inverter Type NONE Speed Range NONE
Motor Wt. 19 LB Enclosure DP Lubrication STANDARD
Nameplate A-92005-4 Mounting RIGID Rotation REV

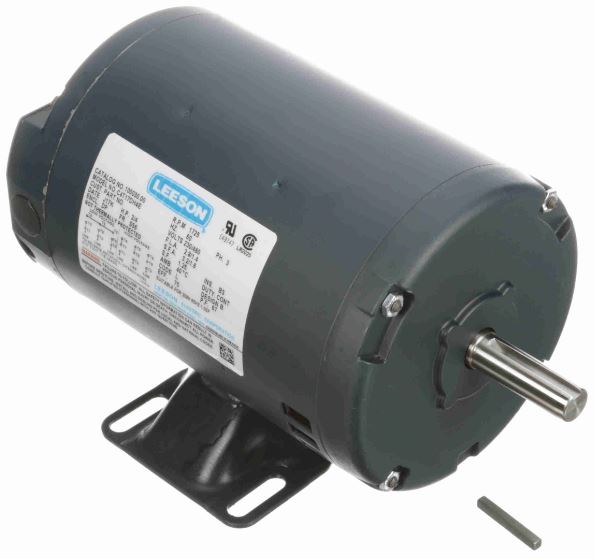

1/4HP LEESON 1725RPM 56 DP 3PH MOTOR 100027.00
Click Image to Enlarge
Image for quick reference only
Manufacturer Part Number: 100027.00
Stock # 100027
