1/3HP LEESON 1725RPM 56C DP 1PH MOTOR 100018.00

LEESON 100018.00 has been superseded E100018.00

Catalog Number:  100018.00
Model Number:  M4C17DC2J
Description:  1/3HP,1725RPM,56C,DP,1PH,60HZ
Ship Weight:  16 lbs.
Volts 115 Volts 208-230 Volts
F.L. Amps 6.6 F.L. Amps 2.9-3.3 F.L. Amps
S. F Amps 7.2 S. F Amps 3.4-3.6 S. F Amps
RPM 1800 Hertz 60
HP 1/3 Duty CONTINUOUS TYPE CD
KW 0.25 Model # M4C17DC2J
Frame S56C Serv. Factor 1.35 Phase 1
Max Amb 40 Design N Code L
Insul Class B Protection MANUAL Therm.Prot. CEG69GA
Eff 100% 61 Eff 75%   PF 59
UL Y-(LEESON UL REC) CSA Yes Bearing OPE 6203
CC Number EXEMPT CE No Bearing PE 6203
Load Type   Inverter Type NONE Speed Range NONE
Motor Wt. 16 LB Enclosure DP Lubrication STANDARD
Nameplate A-92005-6 Mounting ROUND Rotation SELECTIVE CCW

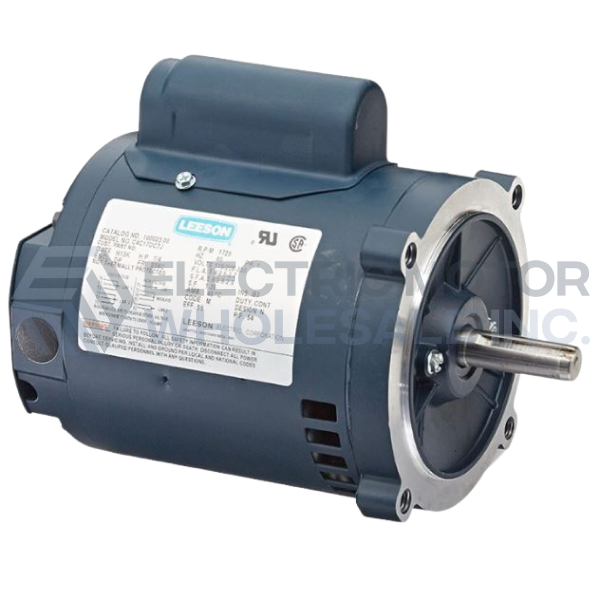

1/3HP LEESON 1725RPM 56C DP 1PH MOTOR 100018.00
Click Image to Enlarge
Picture is for quick reference only
Manufacturer Part Number: 100018.00
Stock # 100018
