1/2HP LEESON 1725RPM 56 DP 1PH WATTSAVERMOTOR E100015.00

LEESON 100015.00 has been superseded by E100015.00

Catalog Number:  E100015.00
Model Number:  C4K17DJ10A
Description:  1/2HP,1725RPM,56,DP,1PH,60HZ,WATTSAVER
Ship Weight:  25 lbs.

APPLICATIONS: Industrial quality, resilient (cradle) mounted, capacitor start-type, ball bearing motors for fan and blower service. Moderate starting torque electrical design to reduce stress on fan blades during start-up. Capacitor-type design has higher energy efficiency rating than split phase, single phase fan and blower motors. Suitable for belt-driven fans or fan-or-shaft applications. Self-ventilated design, may be mounted outside of the fan's airflow.

FEATURES:

  • 5/8" shaft output diameter
  • Drip-proof and totally enclosed designs
  • Industrial quality, resilient (cradle) mounted
  • Capacitor start-type
  • Ball bearing designs
  • Moderate starting torque to reduce machinery stresses
  • Suitable for belt-driven fans or fan-on-shaft applications
  • Non USA Manufactured, MX
Volts 115 Volts 230 Volts
F.L. Amps 4.6 F.L. Amps 2.3 F.L. Amps
S. F Amps 5.6 S. F Amps 2.8 S. F Amps
RPM 1800 Hertz 60
HP 1/2 Duty CONTINUOUS TYPE KD
KW 0.37 Model # C4K17DJ10A
Frame S56 Serv. Factor 1.25 Phase 1
Max Amb 40 Design N Code K
Insul Class B Protection NOT Therm.Prot.
Eff 100% 76.2 Eff 75%   PF 91.6
UL Y-(LEESON UL REC) CSA Yes Bearing OPE 6203
CC Number EXEMPT CE Yes Bearing PE 6203
Load Type   Inverter Type   Speed Range NONE
Motor Wt. 25 LB Enclosure DP Lubrication STANDARD
Nameplate 10000417-001-001 Mounting RESILIENT BASE Rotation SELECTIVE CCW
Assembly   Shaft Dia.   Ext. Diag. A-005054.15-REGAL
Cust Part No   Outline A-SS404125-750 Ext. Diag2
Packaging F Outline Dash No   Winding BE484110

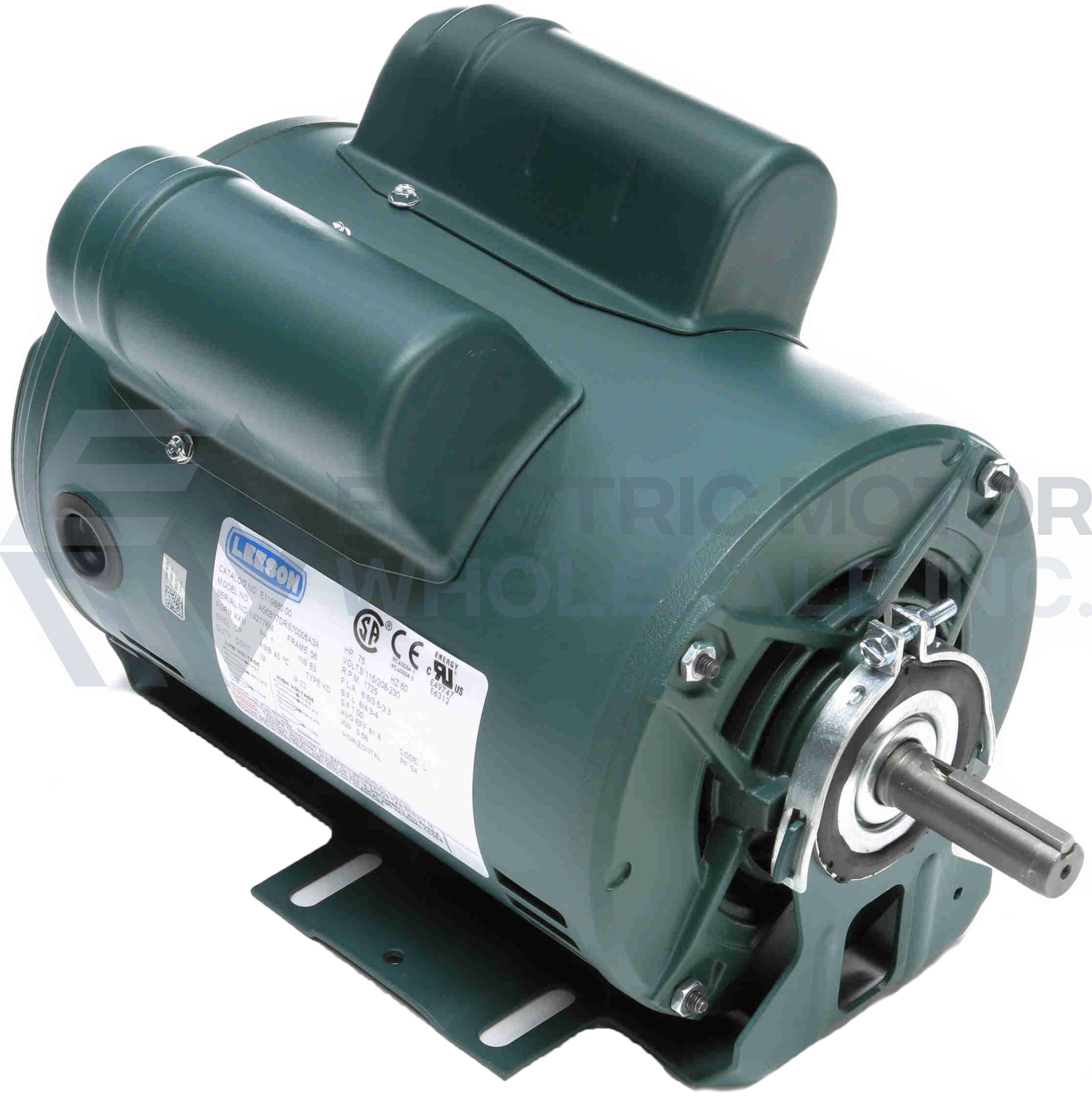

1/2HP LEESON 1725RPM 56 DP 1PH WATTSAVERMOTOR E100015.00
Click Image to Enlarge
Picture is for quick reference only
Manufacturer Part Number: E100015.00
Stock # E100015
Price: $263.00
Compare At: $664.00
Quantity:
