1/3HP LEESON 1725RPM 56 DP 1PH MOTOR 100010.00

1/3HP LEESON 1725RPM 56 DP 1PH MOTOR 100010.00

Picture is for reference only.

Part Number:

100010

Manufacturer:

Leeson Obsolete

Manufacturer Part Number:

100010.00
100010.00 LEESON 1/3HP Single Phase Resilient Base Motor for use where water and dust exposure is minimal. Ideally suited for use on pumps, compressors, blowers, fans, and belted applications.

Item Discontinued

Click below to request an agent review potential options.

Dimensions:

12 x 20 x 12 inches

Technical Details

Application:

HVAC

Output HP:

1/3

Output RPM:

1300-1800

Frame NEMA:

56

Mount NEMA:

Resilient Base

Enclosure NEMA:

DP, OPEN, ODP, OPSB

Voltage:

115, 115/208-230, 115/230, 208, 208-230, 230

Frequency (Hz):

60

Thermal Protection:

Automatic

Phase:

1-Phase

Product Packet REF DASH-550

Leeson Warranty

LEESON 100010.00 has been superseded by E100010.00

Catalog Number:  100010.00
Model Number:  A4C17DJ2 H
Description:  1/3HP,1725RPM,56,DP,1PH,60HZ
Ship Weight:  18 lbs.

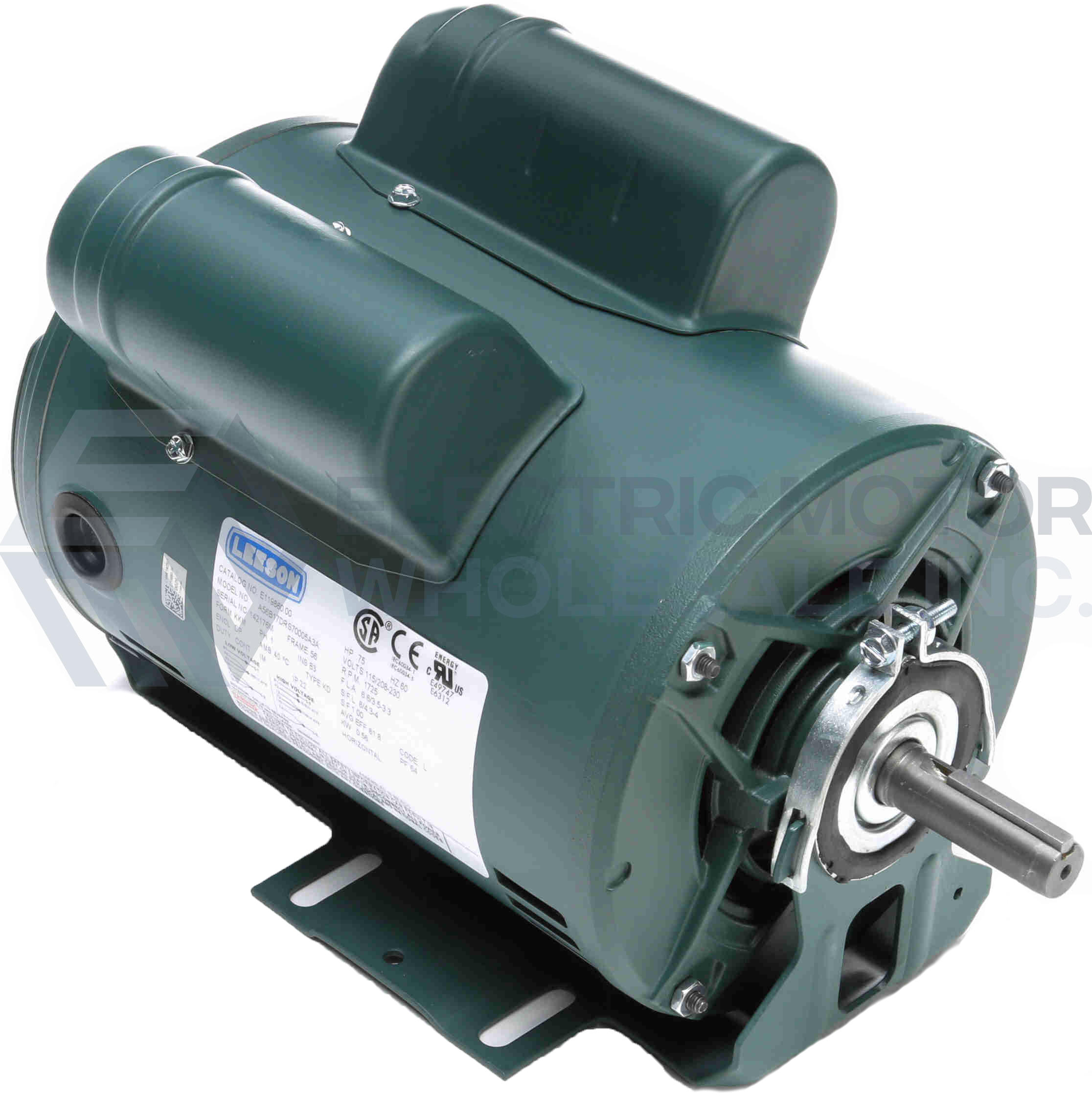

Image for 1/3HP LEESON 1725RPM S56 ODP 1PH ECOSAVER MOTOR E100010.00
