1/4HP LEESON 1750RPM 56C TENV 180VDC WASHDOWN MOTOR 098375.00

1/4HP LEESON 1750RPM 56C TENV 180VDC WASHDOWN MOTOR 098375.00

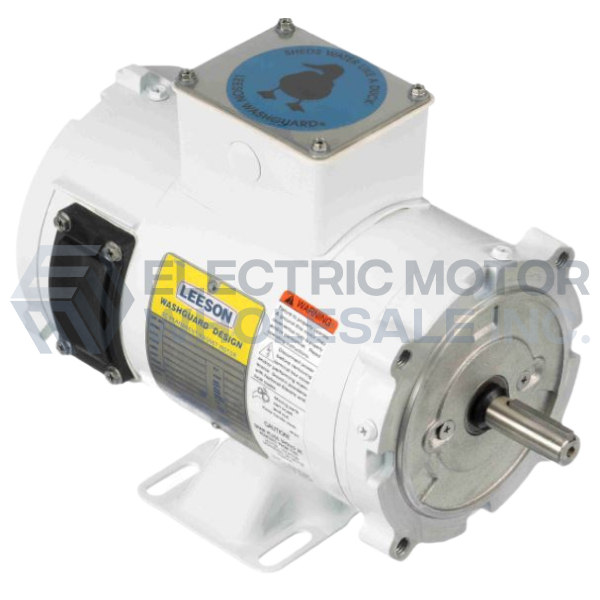

Picture is for reference only.

Part Number:

098375.00

Model/Spec Number:

C42D17VK1A

Manufacturer:

Leeson Obsolete
098375.00 LEESON 1/4HP WASHGUARD DC Motors are designed for extended life in applications requiring regular washdown as in food processing, or otherwise wet, high humidity environments.

Ordering Notes

This product has been discontinued with no direct replacement from the manufacturer. The functional equivalent should be reviewed for application compatibility.


Item Discontinued

Click below to request an agent review potential options.

Weight:

23 lbs

Dimensions:

11 x 22 x 11 inches

HS Code:

8501.31.0000

UPC:

691720347119

Technical Details

Application:

Epoxy Washdown

Output HP:

1/4

Output KW:

0.19

Output RPM:

1750

Frame NEMA:

56C

Mount NEMA:

C-Face With Base

Input Voltage DC:

180

Full Load Amps:

1.4

Winding:

Permanent Magnet

Enclosure NEMA:

TENV

Product Information Packet
