1/4HP LEESON 3600RPM 42 TEFC 115/208-230V 1PH MOTOR 092112.00

Catalog Number:  092112.00 - FREE Ground Shipping in USA
Model Number:  C42C34FB3C
Description:  1/4HP,3450RPM,42,TEFC,115/208-230V,1PH,60HZ
Ship Weight:  18 lbs.

LEESON Single Phase General Purpose Motor for use where exposure is limited to splashes of water, dust and mild corrosives exist. Ideally, suited for use on pumps, compressors, blowers, fans, conveyors, machine tools and other direct or belt-driven applications. Not for outdoor use without proper shielding or for use with harsh chemicals.


  • Made in USA
  • Durable rolled steel frame
  • 3/8" Output shaft with full flat
  • Double-shielded ball bearings
  • Capacitor Start
  • Continuous duty
  • UL Recognized Component Listing and CSA approval
  • Warranty: 12 months from the date of purchase or 18 months from the date of manufacture, whichever comes first
Volts 115 Volts 208-230 Volts
F.L. Amps 4.2 F.L. Amps 2.1 F.L. Amps
S. F Amps 4.4 S. F Amps 2.2 S. F Amps
RPM 3600 Hertz 60
KW 0.19 Model Number C42C34FB3 C
Frame R42 Serv. Factor 1.15 Phase 1
Max Amb 40 Design N Code M
Insul Class B Protection NOT Therm.Prot.
Eff 100% 56 Eff 75%   PF 69
UL Yes CSA Yes Bearing OPE 6203
CC Number EXEMPT CE No Bearing PE 6203
Load Type   Inverter Type NONE Speed Range NONE
Motor Wt. 18.3 LB Enclosure TEFC Lubrication POLYREX EM
Nameplate 004003 Mounting RIGID Rotation SELECTIVE CCW

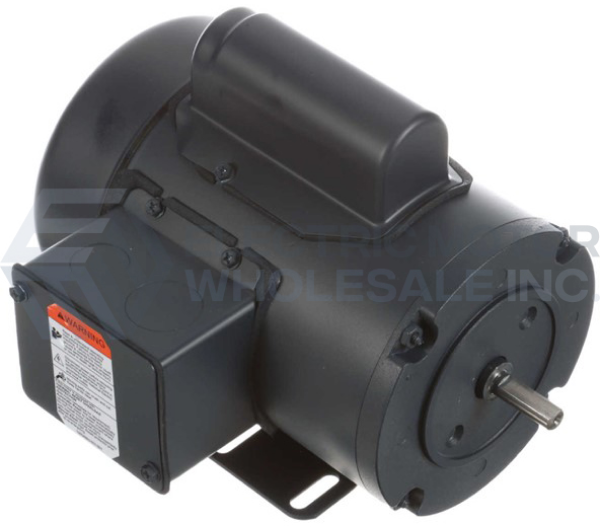

1/4HP LEESON 3600RPM 42 TEFC 115/208-230V 1PH MOTOR 092112.00
Click Image to Enlarge
Image for quick reference only
Manufacturer Part Number: 092112.00
Stock # 092112
