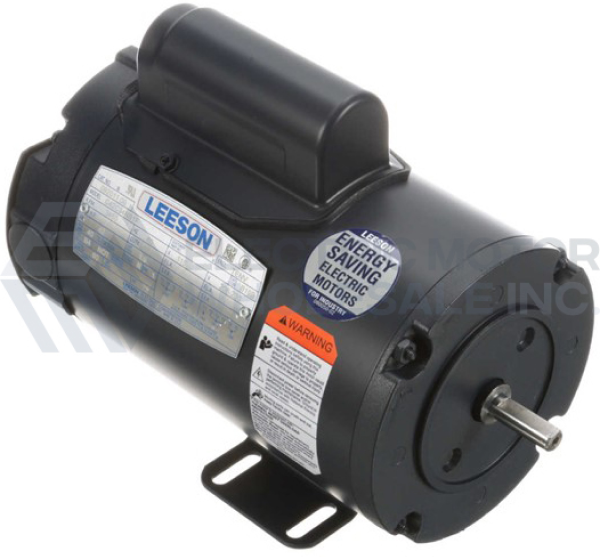

1/4HP LEESON 3450RPM 42 TENV 1PH MOTOR 092013.00
|Catalog Number:||092013.00 - FREE Ground Shipping in USA|
|Model Number:||C42C34NB2 F|
|Ship Weight:||24 lbs.|
This Leeson motor is a Build To Order product and factory lead times are approximately 3-8 weeks after receipt of order. For exact lead times or other interchangeable products please contact our sales team for particulars.
LEESON Single Phase General Purpose Motor for use where exposure is limited to splashes of water, dust and/or where mild corrosives exist. Ideally, suited for use on pumps, compressors, blowers, fans, conveyors, machine tools and other direct or belt-driven applications. Not for outdoor use without proper shielding or for use with harsh chemicals.
- Made in USA
- Durable rolled steel frame
- 3/8" Output shaft with full flat
- Double-shielded ball bearings
- Capacitor Start
- UL Recognized Component Listing and CSA approval
- Warranty: 12 months from the date of purchase or 18 months from the date of manufacture, whichever comes first
|F.L. Amps||3.4||F.L. Amps||1.7||F.L. Amps|
|S. F Amps||None||S. F Amps||S. F Amps|
|KW||0.19||Model Number||C42C34NB2 F|
|Max Amb||40||Design||NO DESIGN CODE||Code||L|
|Eff 100%||63||Eff 75%||PF||77|
|CC Number||EXEMPT||CE||No||Bearing PE||6203|
|Load Type||Inverter Type||Speed Range||NONE|
|Motor Wt.||24 LB||Enclosure||TENV||Lubrication||POLYREX EM|
