1/6HP LEESON 1725RPM 42 TENV 1PH MOTOR 092012.00

Catalog Number:  092012.00 - FREE Ground Shipping in USA
Model Number:  C42C17NB1 H
Description:  1/6HP,1725RPM,42,TENV,1PH,60HZ
Ship Weight:  24 lbs.

This Leeson motor is a Build To Order product and factory lead times are approximately 3-8 weeks after receipt of order. For exact lead times or other interchangeable products please contact our sales team for particulars.

LEESON Single Phase General Purpose Motor for use where exposure is limited to splashes of water, dust and mild corrosives. Ideally, suited for use on pumps, compressors, blowers, fans, conveyors, machine tools and other direct or belt-driven applications. Not for outdoor use without proper shielding or for use with harsh chemicals.

Features Include:

  • Made in USA
  • Durable rolled steel frame
  • 3/8" Keyed output shaft
  • Double-shielded ball bearings
  • Capacitor Start
  • UL Recognized Component Listing and CSA approval
  • Warranty: 12 months from the date of purchase or 18 months from the date of manufacture, whichever comes first
Volts 115 Volts 208-230 Volts
F.L. Amps 3.6 F.L. Amps 1.8 F.L. Amps
S. F Amps None S. F Amps   S. F Amps
RPM 1800 Hertz 60
HP 1/6 Duty CONTINUOUS TYPE CN
KW 0.13 Model Number C42C17NB1H
Frame 42 Serv. Factor 1.0 Phase 1
Max Amb 40 Design NO DESIGN CODE Code N
Insul Class B Protection NOT Therm.Prot.
Eff 100% 56 Eff 75%   PF 53
UL Yes CSA Yes Bearing OPE 6203
CC Number EXEMPT CE No Bearing PE 6203
Load Type   Inverter Type   Speed Range NONE
Motor Wt. 24 LB Enclosure TENV Lubrication POLYREX EM
Nameplate 004003 Mounting RIGID Rotation SELECTIVE CCW

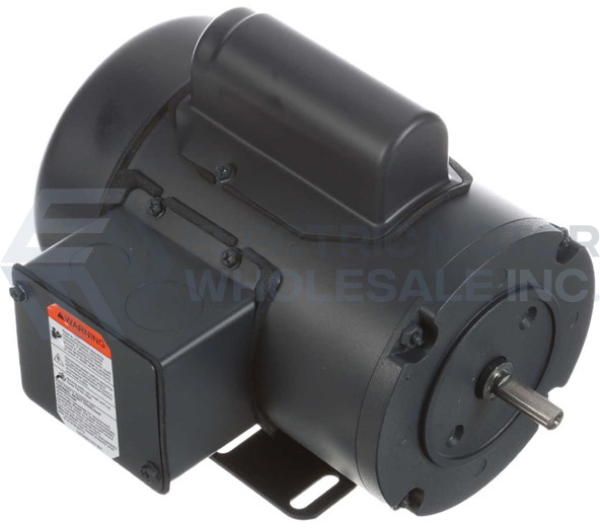

1/6HP LEESON 1725RPM 42 TENV 1PH MOTOR 092012.00
Click Image to Enlarge
Image for quick reference only
Manufacturer Part Number: 092012.00
Stock # 092012
Price: $177.00
Compare At: $445.00
