1HP BROOK CROMPTON 1200RPM 90SD B5 230/460V 3PH IEC MOTOR BC6M001V4D

1HP BROOK CROMPTON 1200RPM 90SD B5 230/460V 3PH IEC MOTOR BC6M001V4D

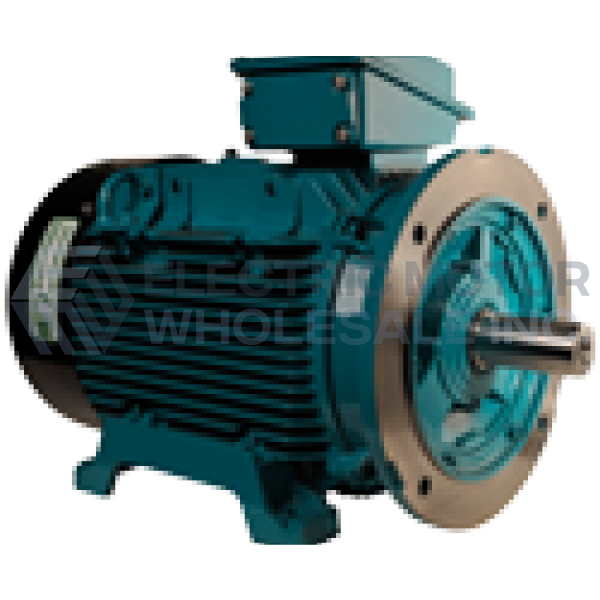

Cast Iron B35.jpg

Part Number:

BC6M001V4D

Manufacturer:

Brook Crompton

Manufacturer Part Number:

BC6M001-4D
BC6M001V4D BROOK CROMPTON 1HP D-Flange heavy duty cast iron construction; frame, end brackets & conduit box with heavy gauge steel; fanguard and non-sparking fan. Used for Severe Duty Applications.

Item Discontinued

Click below to request an agent review potential options.

Weight:

74 lbs

Dimensions:

13 x 28 x 16 inches

HS Code:

8501.52.4000

Technical Details

Brand:

Brook Crompton

Application:

General Purpose

Output HP:

1

Output KW:

0.37

Output RPM:

1200

Frame Size IEC:

90SD

Mount IEC:

B35 Foot/Flange

Enclosure NEMA:

TEFC

Enclosure IEC:

IP55

IEC Shaft Dia.:

24mm
