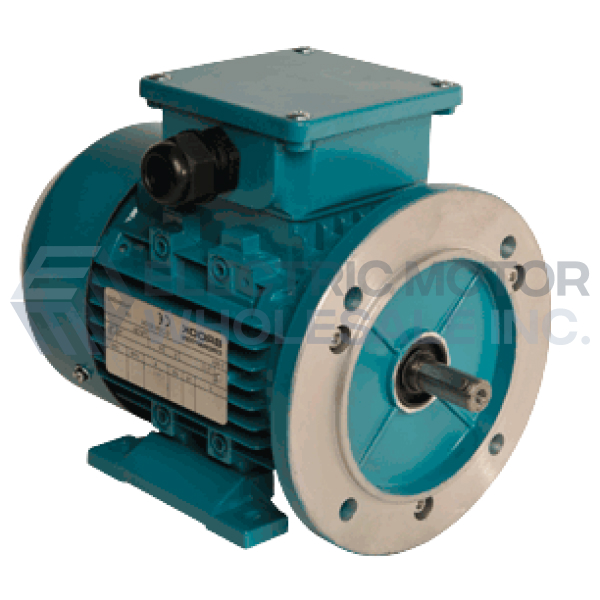

1/4HP BROOK CROMPTON 3600RPM 63 230/460V B5 3PH IEC MOTOR BA2M.25-4D
|Ship Weight:||12 lbs.|
This Brook Crompton product is normally stocked.
For expedited needs, Contact Our Sales Team for availability.
APPLICATIONS: Used in a diverse range of applications from food and drink to water and sewage, from heating and ventilation to refrigeration. Some of the benefits of aluminum over cast iron include high resistance to corrosion and atmospheric attack (except chlorine, salt-laden or sulphuric acid) and the fact that aluminum is approximately one third the weight of cast iron.
- Aluminum construction
- Removable base
- B5 D-Flange, B3 rigid base
- NEMA MG1-PART 31 Inverter Duty
- 15:1 Constant Torque
- Service Factor 1.25
- IP55 degree of protection
- VPI Impregnation
- Internal Tropicproof
- F1, F2, & F3 convertible
- Class F insulation
- Dual Rated 60/50Hz
- Split conduit box is 90 degrees rotatable
- Warranty: 3 Years
- CSA approved for Class I ; Division 2 ; Groups A,B,C & D,T3
