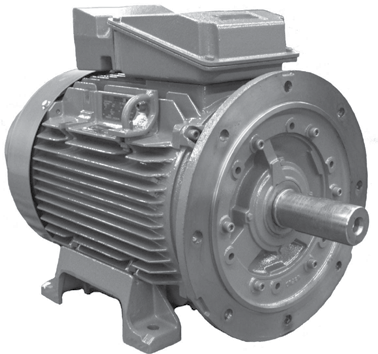

75HP BROOK CROMPTON 1500RPM W-DF250S 380-415V IEC 3PH MOTOR 367E219WC-04

Catalog Number:	367E219WC-04
Description:	75HP,1500RPM,W-DF250S,380-415V,IP55,3PH,50/60Hz,ATEX IEC
Ship Weight:	550 lbs.

This Brook Crompton Motor Can Only Ship Ground Freight
For expedited needs please contact our sales team.

This Brook Crompton product is normally stocked.
For expedited needs, Contact Our Sales Team for availability.

APPLICATIONS: The Ex nA Zone 2 range of non-sparking cast iron motors cover products with outputs from as little as 0.18kW to 400kW in frame sizes 80 to 355L. Motors are manufactured in factories that are licensed by a European notified body (eg EECS/BASEEFA, PTB), meeting rigorous quality controls.

NOTE: For Export Only

Cast Iron Construction
No removable base
For 60Hz ratings, contact our sales team
380-415V/440-480V
B3 Foot mount design, B5 D Flange
Totally Enclosed Fan Cooled Enclosure
Motors comply with CENELEC/EURONORM Standards EN60079; Certified by BASEEFA / ATEX
Zone 2, Groups II T3 non sparking
Class F insulation
C & D Flanges available
F2 to F1, F3 convertible
Warranty: 2 Years
