5HP BALDOR 1770RPM 213TC TENV 3PH MOTOR ZDNM3767T

Catalog Number:  ZDNM3767T
Description:  5HP,1770RPM,213TC,TENV,3PH,60HZ,INVERTER DUTY
Ship Weight:  173 lbs.

This Baldor Motor Can Only Ship Ground Freight
For expedited needs please contact our sales team.

APPLICATIONS: Designed for use with Test stands, material handling, packaging equipment, printing presses, etc. Applications requiring adjustable speed operation with full torque from zero to base speed and constant horsepower to maximum speed.

FEATURES:

  • Full torque at zero speed
  • 1000:1 constant torque range
  • 1/3 thru 500 horsepower
  • Cast Iron construction
  • Class H Insulated
  • ISR® (Inverter Spike Resistant) magnet wire
  • Meets NEMA MG 1, Part 31
BEARING-DRIVE-END: 6307
BEARING-OPP-DRIVE-END: 6206
BLOWER-AMPS: --
BLOWER-HERTZ: --
BLOWER-PHASE: --
BLOWER-VOLTS: --
DESIGN CODE: B
DOE-CODE: --
FL EFFICIENCY: 91
FRAME: 213TC
CATALOG NUMBER: ZDNM3767T
SPEC. NUMBER: 07J134W744Z1
FL AMPS: 13.4/6.7
INSULATION-CLASS: H
MAGNETIZING-CURRENT: 7/3.5
MAXIMUM-RPM: 6000
SPEED [rpm]: 1770
OUTPUT [hp]: 5 TE
PHASE: 3
RATING: 40C AMB-CONT
ROTOR-INERTIA: 0.84
SERIAL-NUMBER: --
SERVICE FACTOR: 1.00
SLIP-HERTZ: 0.83
VOLTAGE: 230/460
HERTZ: 60

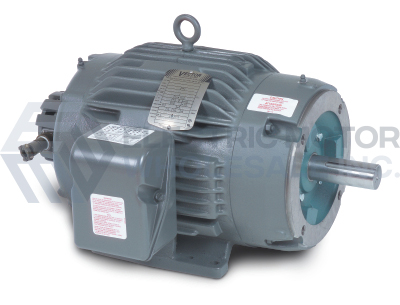

5HP BALDOR 1770RPM 213TC TENV 3PH MOTOR ZDNM3767T
Click Image to Enlarge
Image for quick reference only
Manufacturer Part Number: ZDNM3767T
Stock # ZDNM3767T
Price: $2,408.00
Compare At: $4,145.00
