1HP BALDOR 1745RPM 143TC TENV 3PH MOTOR ZDNM3581T

Catalog Number:  ZDNM3581T
Spec Number:  05E532X129Z1
Description:  1HP,1745RPM,143TC,TENV,3PH,60HZ,INVERTER DUTY
Ship Weight:  59 lbs.

APPLICATIONS: Designed for use with Test stands, material handling, packaging equipment, printing presses, etc. Applications requiring adjustable speed operation with full torque from zero to base speed and constant horsepower to maximum speed.

FEATURES:

  • Full torque at zero speed
  • 7/8" Keyed output shaft
  • 1000:1 constant torque range
  • Closed loop encoder feedback
  • Cast Iron construction
  • Class H Insulated
  • ISR® (Inverter Spike Resistant) magnet wire
  • Meets NEMA MG 1, Part 31
BEARING-DRIVE-END: 6205
BEARING-OPP-DRIVE-END: 6203
BLOWER-AMPS: --
BLOWER-HERTZ: --
BLOWER-PHASE: --
BLOWER-VOLTS: --
DESIGN CODE: B
DOE-CODE: --
FL EFFICIENCY: 85.5
FRAME: 143TC
CATALOG NUMBER: ZDNM3581T
SPEC. NUMBER: 05E532X129Z1
FL AMPS: 2.9/1.45
INSULATION-CLASS: H
MAGNETIZING-CURRENT: 1.8/.9
MAXIMUM-RPM: 6000
SPEED [rpm]: 1745
OUTPUT [hp]: 1 TE
PHASE: 3
RATING: 40C AMB-CONT
ROTOR-INERTIA: 0.142
SERIAL-NUMBER: --
SERVICE FACTOR: 1.00
SLIP-HERTZ: 1.7
VOLTAGE: 230/460
HERTZ: 60

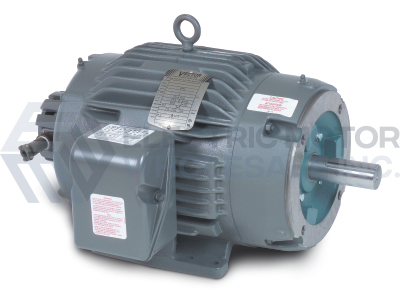

1HP BALDOR 1745RPM 143TC TENV 3PH MOTOR ZDNM3581T
Click Image to Enlarge
Image for quick reference only
Manufacturer Part Number: ZDNM3581T
Stock # ZDNM3581T
Price: $1,719.00
Compare At: $2,958.00
