20HP BALDOR 1780RPM 284T TENV 3PH MOTOR ZDNM2334T

Catalog Number:  ZDNM2334T
Description:  20HP,1780RPM,284T,TENV,3PH,60HZ,INVERTER DUTY
Ship Weight:  405 lbs.

This Baldor Motor Can Only Ship Ground Freight
For expedited needs please contact our sales team.

APPLICATIONS: Designed for use with Test stands, material handling, packaging equipment, printing presses, etc. Applications requiring adjustable speed operation with full torque from zero to base speed and constant horsepower to maximum speed.

FEATURES:

  • Full torque at zero speed
  • 1000:1 constant torque range
  • 1/3 thru 500 horsepower
  • Cast Iron construction
  • Class H Insulated
  • ISR® (Inverter Spike Resistant) magnet wire
  • Meets NEMA MG 1, Part 31
BEARING-DRIVE-END: 6311
BEARING-OPP-DRIVE-END: 6309
BLOWER-AMPS: --
BLOWER-HERTZ: --
BLOWER-PHASE: --
BLOWER-VOLTS: --
DESIGN CODE: A
DOE-CODE: --
FL EFFICIENCY: 94.5
FRAME: 284T
CATALOG NUMBER: ZDNM2334T
SPEC. NUMBER: 10F679W586Z1
FL AMPS: 51/25.5
INSULATION-CLASS: H
MAGNETIZING-CURRENT: 29/14.5
MAXIMUM-RPM: 4000
SPEED [rpm]: 1780
OUTPUT [hp]: 20 TE
PHASE: 3
RATING: 40C AMB-CONT
ROTOR-INERTIA: 4.46
SERIAL-NUMBER: --
SERVICE FACTOR: 1.00
SLIP-HERTZ: 0.67
VOLTAGE: 230/460
HERTZ: 60

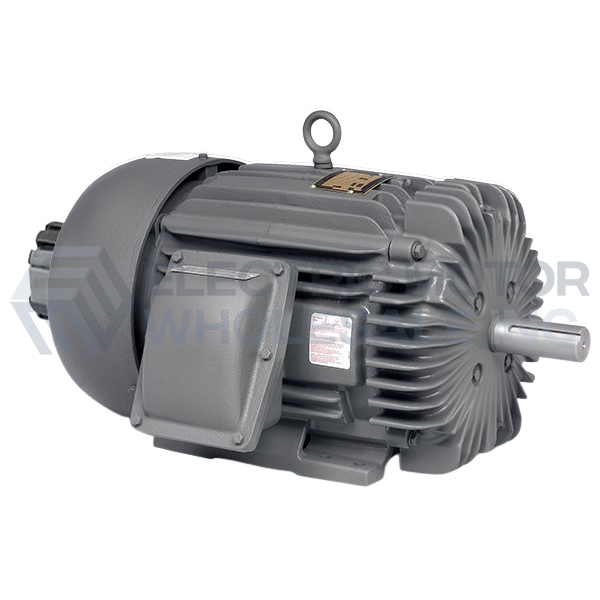

20HP BALDOR 1780RPM 284T TENV 3PH MOTOR ZDNM2334T
Click Image to Enlarge
Image for quick reference only
Manufacturer Part Number: ZDNM2334T
Stock # ZDNM2334T
Price: $3,667.00
Compare At: $6,313.00
