1HP BALDOR 1740RPM 143T TENV 3PH WASHDOWN EPOXY MOTOR WDM3546T

1HP BALDOR 1740RPM 143T TENV 3PH WASHDOWN EPOXY MOTOR WDM3546T

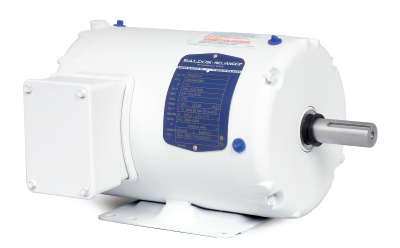

Picture is for reference only.

Part Number:

WDM3546T

Model/Spec Number:

35SS584P439H2

Manufacturer:

Baldor Obsolete Motors
WDM3546T BALDOR 1HP 3PH WASHDOWN EPOXY ELECTRIC MOTOR is designed for use with food processing and other applications where motor is regularly exposed to high pressure wash down.

Item Discontinued

Click below to view suggested functional replacement.
See Replacement Item

Weight:

34 lbs

Dimensions:

14 x 24 x 14 inches

HS Code:

8501516040

UPC:

781568108444

Technical Details

Brand:

Baldor

Application:

Washdown Epoxy

Output HP:

1

Output KW:

0.75

Output RPM:

1740

Frame Size NEMA:

143T

Mount NEMA:

With Base

Enclosure NEMA:

TENV

Enclosure IEC:

IP55

Voltage:

208-230/460

WDM3546T-InfoPacket

APPLICATIONS: Designed for use with food processing and other applications where motor is regularly exposed to high pressure wash down.

FEATURES:

  • Moisture sealant on bolt heads, between frame and endplates
  • Neoprene gaskets
  • Double sealed bearings
  • Forsheda® running contact v-ring slinger
  • Stainless steel shaft
  • Electrostatically applied epoxy finish
  • Class F insulation
  • Tropicalized
