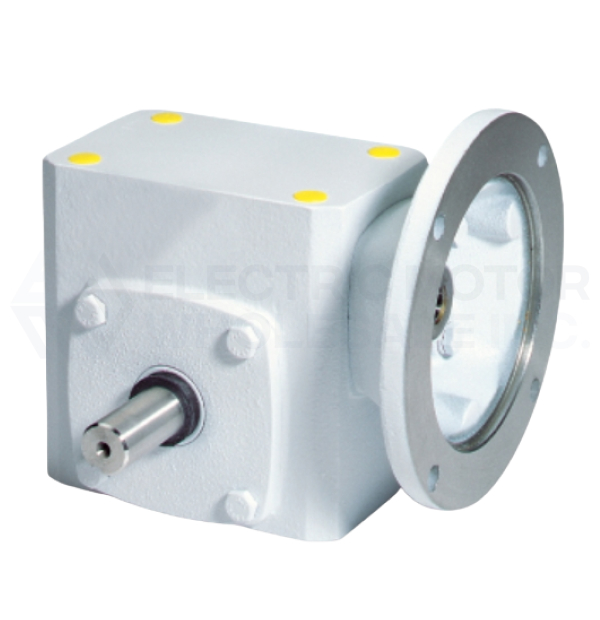

WDF-924-10-B7-G BALDOR 10:1 RIGHT ANGLE WASHDOWN SPEED REDUCER WDGF1024BG

WDF-924-10-B7-G BALDOR 10:1 RIGHT ANGLE WASHDOWN SPEED REDUCER WDGF1024BG

Picture is for reference only.

Part Number:

WDGF1024BG

Model/Spec Number:

GR0210C001

Manufacturer:

Baldor Obsolete Gear

Manufacturer Part Number:

WDF-924-10-B7-G
WDGF1024BG BALDOR WDF-924-10-B7-G Right Angle Washdown Speed Reducer is designed for use with food processing and other applications where units are regularly exposed to high pressure washdown.

Item Discontinued

Click below to view suggested functional replacement.
See Replacement Item

Weight:

40 lbs

Dimensions:

14 x 14 x 14 inches

HS Code:

8483.00.0000

Technical Details

Max Input HP @1750:

2.73

Output RPM @1750:

175

Reduction Ratio:

10:1

Torque (lb-in)@1750rpm:

893

Shaft Center Distance:

2.38

Shaft Center Height:

2.50

Mount Footprint:

2.88” x 5.00”

NEMA Input Mounting:

143-5TC

Mount Style:

DF

Series Size:

924

Product Information Packet

APPLICATIONS: Designed for use with food processing and other applications where units are regularly exposed to high pressure washdown.

FEATURES:

  • Epoxy coated
  • Heavy duty cast iron housings
  • 304 stainless output shafts and all stainless steel hardware
  • Industry-standard mounting dimensions
  • Pre-filled with food grade (H1) Klubersynth UH1-6-460 synthetic oil
  • Sealed housing provides maintenance-free lubed for life operation
  • Bissc certified (Baking Industry Sanitation Standards Committee)
