Electric Motors

/

Discontinued Electric Motors

/

Baldor Discontinued Motors

/

10HP BALDOR 1770RPM 215TC TEFC 3PH EPOXY WASHDOWN MOTOR VWDM3714T

10HP BALDOR 1770RPM 215TC TEFC 3PH EPOXY WASHDOWN MOTOR VWDM3714T

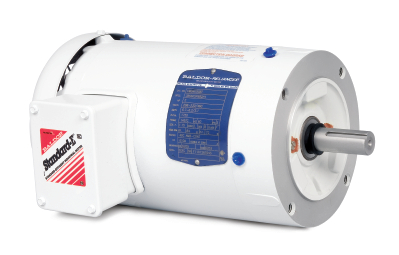

Picture is for reference only.

Part Number:

VWDM3714T

Model/Spec Number:

37H875S275H1

Manufacturer:

Baldor Obsolete Motors
VWDM3714T BALDOR 10HP 3PH EPOXY WASHDOWN ELECTRIC MOTOR is designed for use with food processing and other applications where motor is regularly exposed to high pressure wash down.

Item Discontinued

Click below to view suggested functional replacement.
See Replacement Item

Weight:

129 lbs

Dimensions:

16 x 26 x 18 inches

HS Code:

8501524000

UPC:

781568108871

Technical Details

Brand:

Baldor

Application:

Washdown Epoxy

Output HP:

10

Output KW:

7.5

Output RPM:

1770

Frame Size NEMA:

215TC

Mount NEMA:

C Face No Base

Enclosure NEMA:

TEFC

Enclosure IEC:

IP55

Voltage:

208-230/460

VWDM3714T-InfoPacket

APPLICATIONS: Designed for use with food processing and other applications where motor is regularly exposed to high pressure wash down.

FEATURES:

  • Moisture sealant on bolt heads, between frame and endplates
  • Neoprene gaskets
  • Double sealed bearings
  • Forsheda® running contact v-ring slinger
  • Stainless steel shaft
  • Electrostatically applied epoxy finish
  • Class F insulation
  • Tropicalized
