7.5HP BALDOR 1770RPM 213TC TEFC 3PH EPOXY WASHDOWN MOTOR VWDM3710T

7.5HP BALDOR 1770RPM 213TC TEFC 3PH EPOXY WASHDOWN MOTOR VWDM3710T

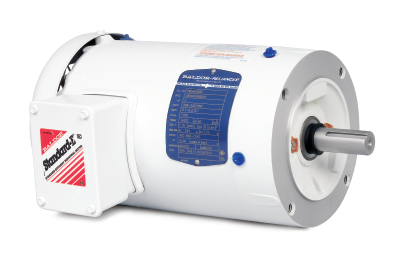

Picture is for reference only.

Part Number:

VWDM3710T

Model/Spec Number:

37H875S150H1

Manufacturer:

Baldor Obsolete Motors
VWDM3710T BALDOR 7.5HP 3PH WASHDOWN ELECTRIC MOTOR is designed for use with food processing and other applications where motor is regularly exposed to high pressure wash down.

Item Discontinued

Click below to view suggested functional replacement.
See Replacement Item

Weight:

110 lbs

Dimensions:

16 x 26 x 18 inches

HS Code:

8501524000

UPC:

781568108864

Technical Details

Brand:

Baldor

Application:

Washdown Epoxy

Output HP:

7.5

Output KW:

5.5

Output RPM:

1770

Frame Size NEMA:

213TC

Mount NEMA:

C Face No Base

Enclosure NEMA:

TEFC

Enclosure IEC:

IP55

Voltage:

208-230/460

VWDM3710T-InfoPacket

This Baldor Motor Can Only Ship Ground Freight
For expedited needs please contact our sales team.

APPLICATIONS: Designed for use with food processing and other applications where motor is regularly exposed to high pressure wash down.

FEATURES:

  • Moisture sealant on bolt heads, between frame and endplates
  • Neoprene gaskets
  • Double sealed bearings
  • Forsheda® running contact v-ring slinger
  • Stainless steel shaft
  • Electrostatically applied epoxy finish
  • Class F insulation
  • Tropicalized
