3HP BALDOR 3450RPM 56C TEFC 3PH EPOXY WASHDOWN MOTOR VWDM3559

3HP BALDOR 3450RPM 56C TEFC 3PH EPOXY WASHDOWN MOTOR VWDM3559

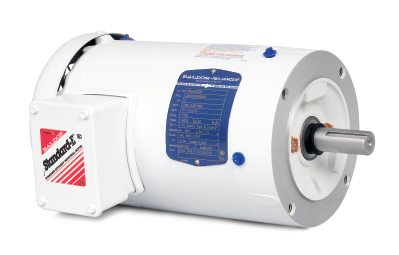

Picture is for reference only.

Part Number:

VWDM3559

Model/Spec Number:

35H815L051H1

Manufacturer:

Baldor Obsolete Motors
VWDM3559 BALDOR 3HP 3PH WASHDOWN EPOXY MOTOR is designed for use with food processing and other applications where motor is regularly exposed to high pressure wash down.

Item Discontinued

Click below to view suggested functional replacement.
See Replacement Item

Weight:

49 lbs

Dimensions:

10 x 22 x 10 inches

HS Code:

8501524000

UPC:

781568451755

Technical Details

Brand:

Baldor

Application:

Washdown Epoxy

Output HP:

3

Output KW:

2.2

Output RPM:

3450

Frame Size NEMA:

56C

Mount NEMA:

C Face No Base

Enclosure NEMA:

TEFC

Enclosure IEC:

IP55

Voltage:

230/460

VWDM3559-InfoPacket

APPLICATIONS: Designed for use with food processing and other applications where motor is regularly exposed to high pressure wash down.

FEATURES:

  • Moisture sealant on bolt heads, between frame and endplates
  • Neoprene gaskets
  • Double sealed bearings
  • Forsheda® running contact v-ring slinger
  • Stainless steel shaft
  • Electrostatically applied epoxy finish
  • Class F insulation
  • Tropicalized
