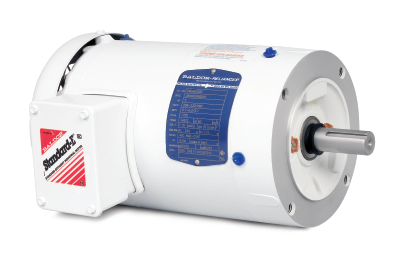

2HP BALDOR 1750RPM 145TC TEFC 3PH EPOXY WASHDOWN MOTOR VWDM3558T

2HP BALDOR 1750RPM 145TC TEFC 3PH EPOXY WASHDOWN MOTOR VWDM3558T

Picture is for reference only.

Part Number:

VWDM3558T

Model/Spec Number:

35SS605N917H1

Manufacturer:

Baldor Obsolete Motors
VWDM3558T BALDOR 2HP 3PH WASHDOWN MOTOR is designed for use with food processing and other applications where motor is regularly exposed to high pressure wash down.

Item Discontinued

Click below to view suggested functional replacement.
See Replacement Item

Weight:

41 lbs

Dimensions:

14 x 24 x 14 inches

HS Code:

8501524000

UPC:

781568108833

Technical Details

Brand:

Baldor

Application:

Washdown Epoxy

Output HP:

2

Output KW:

1.5

Output RPM:

1750

Frame Size NEMA:

145TC

Mount NEMA:

C Face No Base

Enclosure NEMA:

TEFC

Enclosure IEC:

IP55

Voltage:

208-230/460

VWDM3558T-InfoPacket

APPLICATIONS: Designed for use with food processing and other applications where motor is regularly exposed to high pressure wash down.

FEATURES:

  • Moisture sealant on bolt heads, between frame and endplates
  • Neoprene gaskets
  • Double sealed bearings
  • Forsheda® running contact v-ring slinger
  • Stainless steel shaft
  • Electrostatically applied epoxy finish
  • Class F insulation
  • Tropicalized
