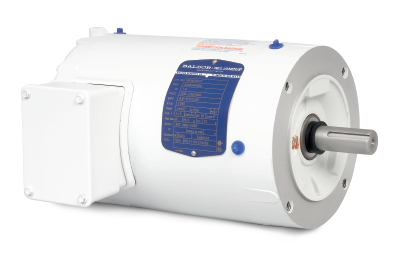

1.5HP BALDOR 1755RPM 145TC TENV 3PH EPOXY WASHDOWN MOTOR VWDM3554T

1.5HP BALDOR 1755RPM 145TC TENV 3PH EPOXY WASHDOWN MOTOR VWDM3554T


Part Number:

VWDM3554T

Model/Spec Number:

35SS606P689H1

Manufacturer:

Baldor Obsolete Motors
VWDM3554T BALDOR 1.5HP 3PH EPOXY WASHDOWN MOTOR is designed for use with food processing and other applications where motor is regularly exposed to high pressure wash down.

Item Discontinued

Click below to view suggested functional replacement.
See Replacement Item

Weight:

43 lbs

Dimensions:

14 x 24 x 14 inches

HS Code:

8501524000

UPC:

781568108819

Technical Details

Brand:

Baldor

Application:

Washdown Epoxy

Output HP:

1.5

Output KW:

1.1

Output RPM:

1755

Frame Size NEMA:

145TC

Mount NEMA:

C Face No Base

Enclosure NEMA:

TENV

Enclosure IEC:

IP55

Voltage:

208-230/460

VWDM3554T-InfoPacket

APPLICATIONS: Designed for use with food processing and other applications where motor is regularly exposed to high pressure wash down.

FEATURES:

  • Moisture sealant on bolt heads, between frame and endplates
  • Neoprene gaskets
  • Double sealed bearings
  • Forsheda® running contact v-ring slinger
  • Stainless steel shaft
  • Electrostatically applied epoxy finish
  • Class F insulation
  • Tropicalized
