Home > Electric Motors > Discontinued Electric Motors > Baldor Discontinued AC Motors > 1.5HP BALDOR 1755RPM 145TC TEFC 3PH MOTOR VUHM3554T-5

1.5HP BALDOR 1755RPM 145TC TEFC 3PH MOTOR VUHM3554T-5

Catalog Number:  VUHM3554T-5
Description:  1.5HP,1755RPM,145TC,TEFC,3PH,60HZ,UNIT HANDLING
Ship Weight:  40 lbs.

APPLICATIONS: Designed for use with unit and baggage handling, conveyors, packaging equipment, machine tools, hoists, elevators and door operators.

FEATURES:

  • UL/CSA recognized and CE certified
  • CEUHM/VEUHM motors are Super-E® with NEMA Premium® efficiency
  • CUHM/VUHM motors are EPAct efficiency and all are inverter-ready
  • 143-145TY and 143-145TYC frame motors have a special base with 56, 143 and 145 slots used on OEM conveyors
  • 56-140 frames have low profile F3 top-mounted conduit box
  • 3 year warranty on Super-E® motors
SPEC. NUMBER: 35W819M449H1
CATALOG NUMBER: VUHM3554T-5
FL AMPS: 1.9
208V AMPS: --
BEARING-DRIVE-END: 6205
BEARING-OPP-DRIVE-END: 6203
DESIGN CODE: B
DOE-CODE: 010A
FL EFFICIENCY: 84
ENCLOSURE: TEFC
FRAME: 145TC
HERTZ: 60
INSULATION-CLASS: F
KVA-CODE: M
SPEED [rpm]: 1755
OUTPUT [hp]: 1.5
PHASE: 3
POWER-FACTOR: 70
RATING: 40C AMB-CONT
SERIAL-NUMBER: --
SERVICE FACTOR: 1.15
VOLTAGE: 575

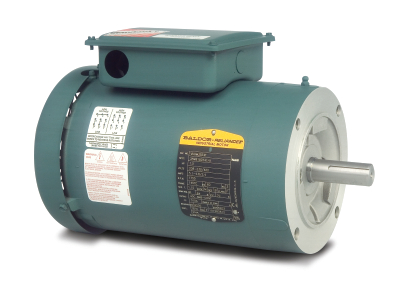

1.5HP BALDOR 1755RPM 145TC TEFC 3PH MOTOR VUHM3554T-5
Click Image to Enlarge
Image for quick reference only
Manufacturer Part Number: VUHM3554T-5
Stock # VUHM3554T-5
