1/2HP BALDOR 1725RPM 56C TEFC 1PH MOTOR VUHL3518

Catalog Number:  VUHL3518
Description:  1/2HP,1725RPM,56C,TEFC,1PH,60HZ,UNIT HANDLING
Ship Weight:  35 lbs.

APPLICATIONS: Designed for use with unit and baggage handling, conveyors, packaging equipment, machine tools, hoists, elevators and door operators.

FEATURES:

  • UL/CSA recognized and CE certified
  • CEUHM/VEUHM motors are Super-E® with NEMA Premium® efficiency
  • CUHM/VUHM motors are EPAct efficiency and all are inverter-ready
  • 143-145TY and 143-145TYC frame motors have a special base with 56, 143 and 145 slots used on OEM conveyors
  • 56-140 frames have low profile F3 top-mounted conduit box
  • 3 year warranty on Super-E® motors
SPEC. NUMBER: 35X062-0154G1
CATALOG NUMBER: VUHL3518
FL AMPS: 8/3.8-4
208V AMPS: 3.8
BEARING-DRIVE-END: 6205
BEARING-OPP-DRIVE-END: 6203
DESIGN CODE: N
DOE-CODE: --
FL EFFICIENCY: 64
ENCLOSURE: TEFC
FRAME: 56C
HERTZ: 60
INSULATION-CLASS: F
KVA-CODE: L
SPEED [rpm]: 1725
OUTPUT [hp]: .5
PHASE: 1
POWER-FACTOR: 63
RATING: 40C AMB-CONT
SERIAL-NUMBER: --
SERVICE FACTOR: 1.15
VOLTAGE: 115/208-230

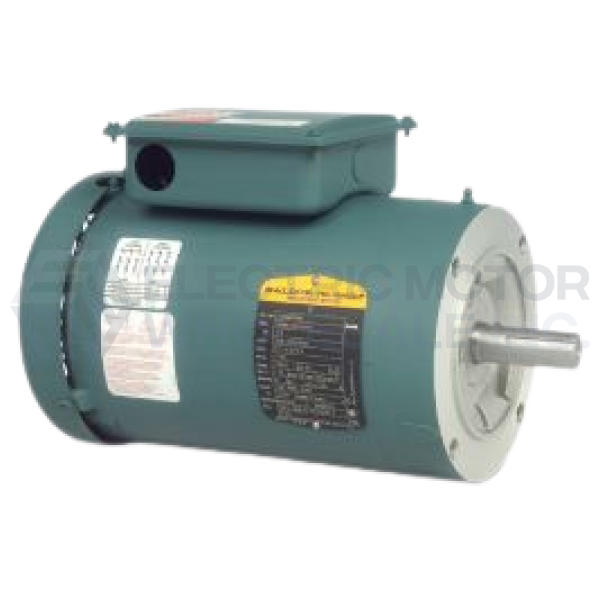

1/2HP BALDOR 1725RPM 56C TEFC 1PH MOTOR VUHL3518
Click Image to Enlarge
Image for quick reference only
Manufacturer Part Number: VUHL3518
Stock # VUHL3518
Price: $270.00
Compare At: $464.00
