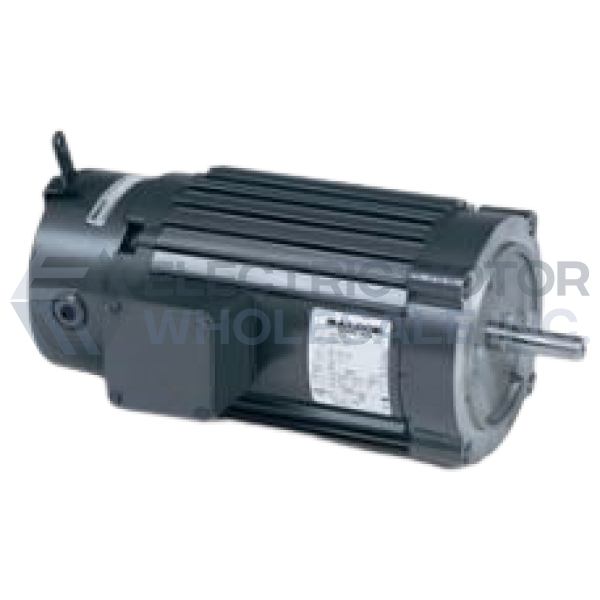

1HP BALDOR 1725RPM 56C TENV 3PH BRAKEMOTOR VRBM3546

BALDOR Catalog Number:  VRBM3546
Description:  1HP,1725RPM,56C,TENV,3PH,60HZ,BRAKE
Ship Weight:  47 lbs.

APPLICATIONS: Designed for use with baggage conveyors and other applications requiring frequent starting and stopping.

FEATURES:

  • Low inertia high efficiency motor with cast aluminum footless frame
  • DC brake with integral rectifier
  • Brake coil is connected in the motor conduit box so it may be disconnected and separately excited if the motor is used with an inverter
SPEC. NUMBER: 34K208Y158G1
CATALOG NUMBER: VRBM3546
FL AMPS: 3.2/1.6
208V AMPS: --
BEARING-DRIVE-END: 6203
BEARING-OPP-DRIVE-END: 6203
DESIGN CODE: B
DOE-CODE: --
FL EFFICIENCY: 80
ENCLOSURE: TENV
FRAME: 56C
HERTZ: 60
INSULATION-CLASS: F
KVA-CODE: M
SPEED [rpm]: 1725
OUTPUT [hp]: 1
PHASE: 3
POWER-FACTOR: 77
RATING: 40C AMB-CONT
SERIAL-NUMBER: --
SERVICE FACTOR: 1.15
VOLTAGE: 230/460
1HP BALDOR 1725RPM 56C TENV 3PH BRAKEMOTOR VRBM3546
Click Image to Enlarge
Manufacturer Part Number: VRBM3546
Stock # VRBM3546
Price: $1,215.00
Compare At: $2,091.00
