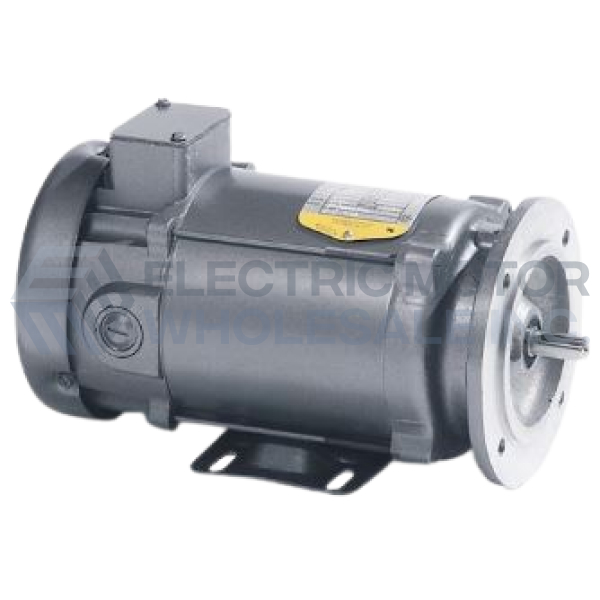

1/5HP BALDOR 1800RPM D63D TENV 180VDC B5 PERMANENT MAGNET MOTOR VP7424D

1/5HP BALDOR 1800RPM D63D TENV 180VDC B5 PERMANENT MAGNET MOTOR VP7424D

Picture is for reference only.

Part Number:

VP7424D

Model/Spec Number:

24508A

Manufacturer:

Baldor Obsolete Motors
VP7424D BALDOR 1/5HP 180VDC B5 Permanent Magnet Metric motors include SCR Drive Motors for replacement on machinery requiring metric mounting dimensions.

Item Discontinued

Click below to request an agent review potential options.

Weight:

10 lbs

Dimensions:

14 x 15 x 12 inches

HS Code:

8501.31.4000

UPC:

781568154953

Technical Details

Application:

General Purpose

Output HP:

1/5

Output KW:

0.15

Output RPM:

1800

Frame IEC:

D63D

Input Voltage DC:

180

Full Load Amps:

1.1

Winding:

Permanent Magnet

Enclosure NEMA:

TENV

Brand:

Baldor

VP7424D-InfoPacket

BALDOR DC Permanent Magnet DC Motors are available with a choice of IEC B5 flanges in .2 to 5 HP or B14 C-faces in .2 to 2 HP. All are designed for 180 volt input power with a 20:1 constant torque speed range. These metric frames are designed for replacement on equipment requiring an IEC interface with the gearbox.

APPLICATIONS: include SCR Drive Motors for replacement on machinery requiring metric mounting dimensions.

  • B5 Metric flange with B3 foot mounting
  • Bolt on non-metric base
  • Class F Insulation
  • Tach adaptable except type 15kW
  • 20:1 constant torque speed range
  • Conforms to IEC 60034-1
Image for KBMD-240D KB ELECTRONICS 11AMP NEMA1 SCR SPEED CONTROL 115/230VAC 1-WAY 9370

KBMD-240D KB ELECTRONICS 11AMP NEMA1 SCR SPEED CONTROL 115/230VAC 1-WAY 9370

MSRP: $274.00

Regular Price

$

191

80

Image for 3/4HP KB Electronics KBWM-240 NEMA1 3.5 Amp 230VAC 180VDC SCR CONTROL 9381

3/4HP KB Electronics KBWM-240 NEMA1 3.5 Amp 230VAC 180VDC SCR CONTROL 9381

MSRP: $197.00

Regular Price

$

137

90

Image for KBMD-240D KB ELECTRONICS 11AMP NEMA1 SCR SPEED CONTROL BI-DIRECTION 9371

KBMD-240D KB ELECTRONICS 11AMP NEMA1 SCR SPEED CONTROL BI-DIRECTION 9371

MSRP: $394.00

Regular Price

$

275

80

Image for KBRC-240D KB Electronics 11 Amps NEMA4X DC Regenerative Speed Control 8840

KBRC-240D KB Electronics 11 Amps NEMA4X DC Regenerative Speed Control 8840

MSRP: $510.00

Regular Price

$

357

00

Image for KBPC-240D KB Electronics 10.2Amp NEMA4X DC SCR Motor Speed Control 9338

KBPC-240D KB Electronics 10.2Amp NEMA4X DC SCR Motor Speed Control 9338

MSRP: $404.00

Regular Price

$

282

80

Image for KBMG-212D KB Electronics 11AMP Chassis REGEN Drive 115/230VAC 8831

KBMG-212D KB Electronics 11AMP Chassis REGEN Drive 115/230VAC 8831

MSRP: $286.00

Regular Price

$

200

20

Image for KBMM-225D KB Electronics 16 Amp SCR 115/230VAC Chassis Drive 90/180VDC Output 9451

KBMM-225D KB Electronics 16 Amp SCR 115/230VAC Chassis Drive 90/180VDC Output 9451

MSRP: $237.00

Regular Price

$

165

90

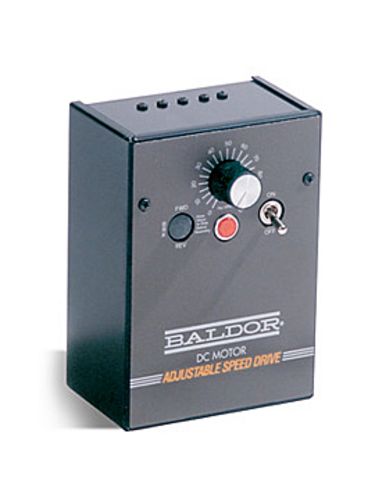

Image for BALDOR BC140, 1/100-2HP, DC SCR CONTROL (ONE WAY)
