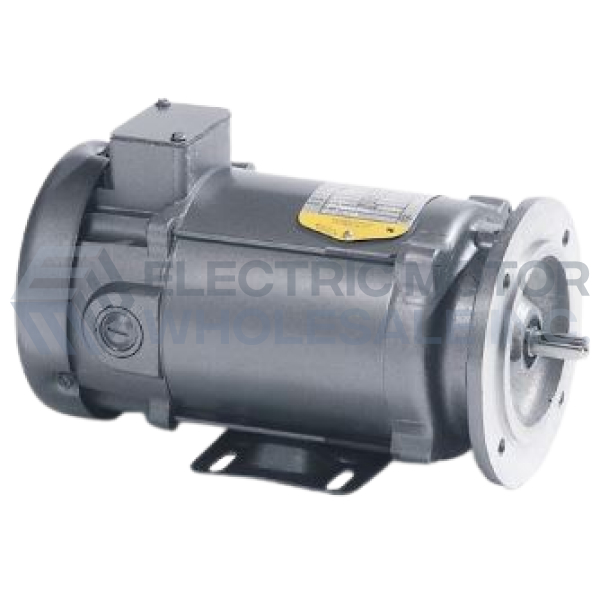

1/3HP BALDOR 1750RPM 71C TEFC 180VDC MOTOR VP3416-14
|BALDOR Catalog Number:||VP3416-14|
|Ship Weight:||31 lbs.|
BALDOR DC Permanent Magnet DC Motors are available with a choice of IEC B5 flanges in .2 to 5 HP or B14 C-faces in .2 to 2 HP. All are designed for 180 volt input power with a 20:1 constant torque speed range. These metric frames are designed for replacement on equipment requiring an IEC interface with the gearbox.
APPLICATIONS: include SCR Drive Motors for replacement on machinery requiring metric mounting dimensions.
- B14 Metric flange with B3 foot mounting
- Bolt on non-metric base
- Class F Insulation
- Tach adaptable except type 15kW
- 20:1 constant torque speed range
- Conforms to IEC 60034-1
|Full Load Amps - Armature:||1.7|
|Full Load Amps - Field:||N/A|
|Electrical Specification Number:||34WG4397|
|Mechanical Specification Number:||34-6242|
|Tach Mounting Kit:||N/A|
|Recommended SCR Control:||N/A|
|Brush Part Number:||2/BP5000AW14|
