1.5HP BALDOR 1435RPM 145TC TEFC 50HZ 3PH MOTOR VM3554T-50

1.5HP BALDOR 1435RPM 145TC TEFC 50HZ 3PH MOTOR VM3554T-50

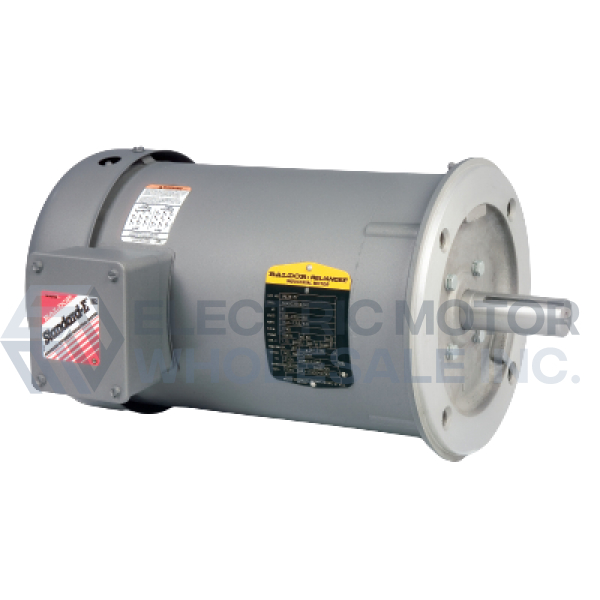

Picture is for reference only.

Part Number:

VM3554T-50

Model/Spec Number:

35A03X142

Manufacturer:

Baldor Obsolete Motors
VM3554T-50 BALDOR 1.5HP Electric motor designed for Pumps, fans, gear reducers, conveyors and many other applications with 50 Hz power supply. Motors designed to be used at rated voltage with tolerances of +- 15%.

Item Discontinued

Click below to view suggested functional replacement.
See Replacement Item

Weight:

39 lbs

Dimensions:

12 x 20 x 12 inches

HS Code:

8501.52.4000

UPC:

781568120392

Technical Details

Brand:

Baldor

Application:

General Purpose

Output HP:

1.5

Output KW:

1.1

Output RPM:

1425

Frame Size NEMA:

145TC

Mount NEMA:

Footless

Enclosure NEMA:

TEFC

Voltage:

220/380/440

Frequency (Hz):

50

VM3554T-50-InfoPacket

APPLICATIONS: Pumps, compressors, fans, conveyors, machine tools and other applications where 50 Hz power is available. Motors are designed to be used at rated voltages with tolerance of ± 15% on voltage.

FEATURES:

  • Windings tied each end at every slot for rigidity
  • Ball bearings
  • High temperature insulation
  • Copper windings
