1HP BALDOR 2850RPM 56C TEFC 50HZ 3PH MOTOR VM3545-50

1HP BALDOR 2850RPM 56C TEFC 50HZ 3PH MOTOR VM3545-50

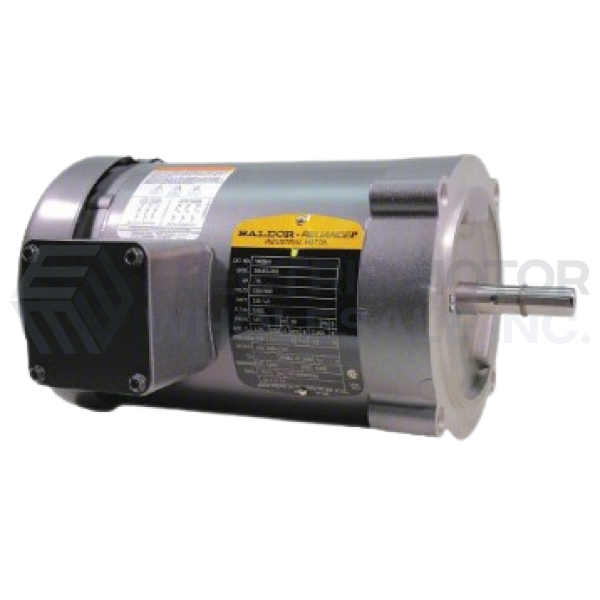

Picture is for reference only.

Part Number:

VM3545-50

Model/Spec Number:

34A63W637

Manufacturer:

Baldor Obsolete Motors
VM3545-50 BALDOR 1HP Three Phase Motor is designed for 50Hz applications which include compressors, pumps, fans, conveyors, material handling, machine tools and many others.

Item Discontinued

Click below to view suggested functional replacement.
See Replacement Item

Weight:

26 lbs

Dimensions:

12 x 20 x 12 inches

HS Code:

8501.51.6040

UPC:

781568120361

Technical Details

Brand:

Baldor

Application:

General Purpose

Output HP:

1

Output KW:

0.75

Output RPM:

2850

Frame Size NEMA:

56C

Mount NEMA:

Footless

Enclosure NEMA:

TEFC

Voltage:

220/380/440

Frequency (Hz):

50

VM3545-50-InfoPacket

APPLICATIONS: Pumps, compressors, fans, conveyors, machine tools and other applications where 50 Hz power is available. Motors are designed to be used at rated voltages with tolerance of ± 15% on voltage.

FEATURES:

  • Windings tied each end at every slot for rigidity
  • Ball bearings
  • High temperature insulation
  • Copper windings
