10HP BALDOR 1760RPM 215LP TEFC 3PH MOTOR VLCP3774T

BALDOR VLCP3774T has been superseded by VLECP3774T

Catalog Number:  VLCP3774T
Description:  10HP,1760RPM,215LP,TEFC,3PH,60HZ
Ship Weight:  169 lbs.

APPLICATIONS: For medium and high thrust in-line pump applications. Waste water treatment plants, petro chemical industries, pulp and paper mills and agricultural irrigation applications.

FEATURES:

  • Severe duty construction with corrosion-resistant epoxy finish.
  • Cast-iron construction
  • Designed for vertical mounting
  • Rotatable conduit box
  • Stainless steel nameplates
  • Shaft seals
  • Energy efficient windings.
  • Two lifting lugs for balanced lifting.
  • Energy efficient winding
  • VHECP motors have NEMA Premium® efficiency and are Inverter-Ready.
  • 1.15 Service Factor.
INSULATION-CLASS: F
HERTZ: 60
FRAME: 215LP
ENCLOSURE: TEFC
FL EFFICIENCY: 89.5
DOE-CODE: --
DESIGN CODE: B
BEARING-OPP-DRIVE-END: 6307
BEARING-DRIVE-END: QJ211
208V AMPS: --
FL AMPS: 27.5-26/13
CATALOG NUMBER: VLCP3774T
SPEC. NUMBER: 07H347X761H1
KVA-CODE: H
VOLTAGE: 208-230/460
SERVICE FACTOR: 1.15
SERIAL-NUMBER: --
RATING: 40C AMB-CONT
POWER-FACTOR: 80
PHASE: 3
OUTPUT [hp]: 10
SPEED [rpm]: 1760
PULLEY-BEARING: QJ211
GREASE-BLANK-LINE: --
GREASE: POLYREX EM
FRONT-BEARING: 6307

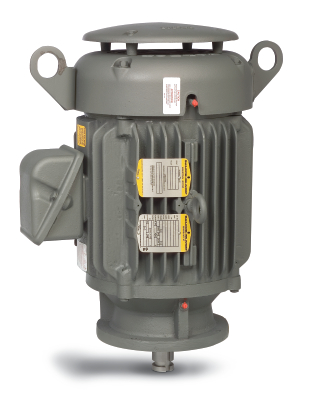

10HP BALDOR 1760RPM 215LP TEFC 3PH MOTOR VLCP3774T
Click Image to Enlarge
Manufacturer Part Number: VLCP3774T
Stock # VLCP3774T
