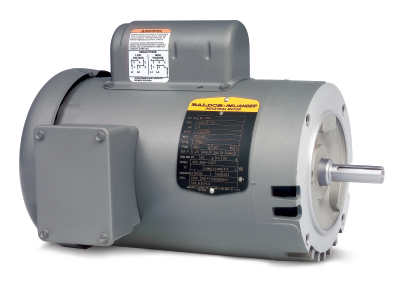

1.5HP BALDOR 3450RPM 56C OPEN 1PH MOTOR VL1313

1.5HP BALDOR 3450RPM 56C OPEN 1PH MOTOR VL1313

Picture is for reference only.

Part Number:

VL1313

Model/Spec Number:

34F534X768

Manufacturer:

Baldor Obsolete Motors
VL1313 BALDOR 1.5HP General purpose single phase electric motor.

Item Discontinued

Click below to view suggested functional replacement.
See Replacement Item

Weight:

33 lbs

Dimensions:

10 x 22 x 10 inches

HS Code:

8501.40.6040

UPC:

781568110874

Technical Details

Application:

General Purpose

Output HP:

1.5

Output KW:

1.1

Output RPM:

3450

Frame NEMA:

56C

Mount NEMA:

C-Face No Base

Enclosure NEMA:

OPEN

Enclosure IEC:

IP22

Voltage:

115/230

Frequency (Hz):

60

VL1313-InfoPacket

APPLICATIONS: Fans, blowers, compressors, tools, speed reducers.

FEATURES

  • Ball bearings
  • Locked drive end bearing
  • Heavy gauge steel frame
