5HP BALDOR 3440RPM 184HP ODP 3PH SUPER-E PUMP MOTOR VHEM3212T

5HP BALDOR 3440RPM 184HP ODP 3PH SUPER-E PUMP MOTOR VHEM3212T

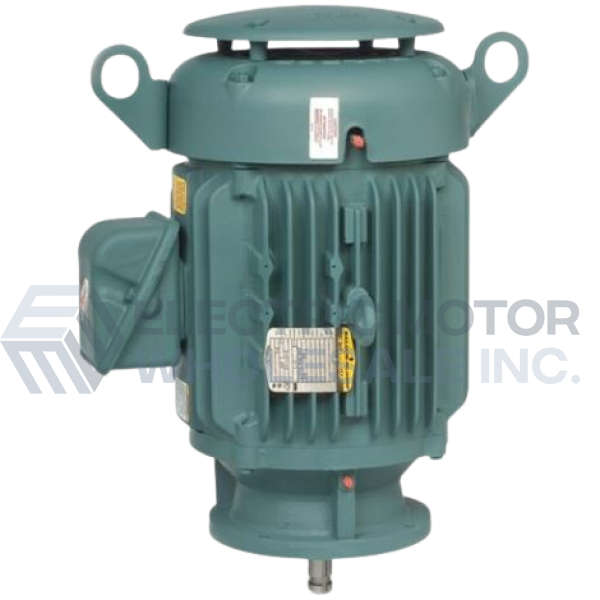

Picture is for reference only.

Part Number:

VHEM3212T

Model/Spec Number:

06F867Y461G1

Manufacturer:

Baldor Obsolete Motors
VHEM3212T BALDOR 5HP P-Base Vertical Solid Shaft Pump Motors are designed for normal thrust applications. Waste water treatment plants, petro-chemical, pulp and plants and agricultural irrigation application.

Item Discontinued

Click below to request an agent review potential options.

Weight:

99 lbs

Dimensions:

13 x 26 x 13 inches

HS Code:

8501.52.4000

UPC:

781568827116

Technical Details

Brand:

Baldor

Application:

Severe Duty

Output HP:

5

Output KW:

3.7

Output RPM:

3440

Frame Size NEMA:

184HP

Mount NEMA:

P Base Normal

Enclosure NEMA:

ODP

Voltage:

230/460

Frequency (Hz):

60

VHEM3212T-InfoPacket.pdf
