20HP BALDOR 1765RPM 256HP OPEN 3PH SUPER-E PUMP MOTOR VHEM2515T

20HP BALDOR 1765RPM 256HP OPEN 3PH SUPER-E PUMP MOTOR VHEM2515T

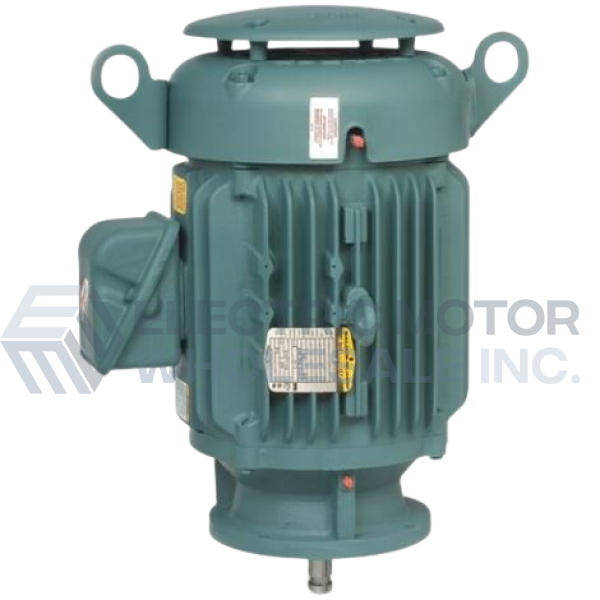

Picture is for reference only.

Part Number:

VHEM2515T

Model/Spec Number:

09G625Y363G1

Manufacturer:

Baldor Obsolete Motors
VHEM2515T BALDOR 20HP P-Base Vertical Solid Shaft Pump Motors are designed for normal thrust applications. Waste water treatment plants, petro-chemical, pulp and plants and agricultural irrigation application.

Item Discontinued

Click below to request an agent review potential options.

Weight:

287 lbs

Dimensions:

24 x 32 x 24 inches

HS Code:

8501524000

UPC:

781568799888

Technical Details

Brand:

Baldor

Application:

Severe Duty

Output HP:

20

Output KW:

15.0

Output RPM:

1765

Frame Size NEMA:

256HP

Mount NEMA:

P Base Normal

Enclosure NEMA:

OPEN

Voltage:

230/460

Frequency (Hz):

60

VHEM2515T-InfoPacket.pdf
