50HP BALDOR 3540RPM 326HP TEFC 3PH MOTOR VHECP4114T

Catalog Number:  VHECP4114T
Description:  50HP,3540RPM,326HP,TEFC,3PH,60HZ
Ship Weight:  668 lbs.

APPLICATIONS: For medium and high thrust in-line pump applications. Waste water treatment plants, petro chemical industries, pulp and paper mills and agricultural irrigation applications.

FEATURES:

  • Severe duty construction with corrosion-resistant epoxy finish.
  • Cast-iron construction
  • Designed for vertical mounting
  • Rotatable conduit box
  • Stainless steel nameplates
  • Shaft seals
  • Energy efficient windings.
  • Two lifting lugs for balanced lifting.
  • Energy efficient winding
  • VHECP motors have NEMA Premium® efficiency and are Inverter-Ready.
  • 1.15 Service Factor.
  • Warranty – 42 months from date of manufacture
    and 36 months from date of installation which ever period expires first.
SPEC. NUMBER: 12S033X911
CATALOG NUMBER: VHECP4114T
FL AMPS: 124-112/56
208V AMPS: --
BEARING-DRIVE-END: 6312
BEARING-OPP-DRIVE-END: 6311
DESIGN CODE: B
DOE-CODE: 010A
FL EFFICIENCY: 94.1
ENCLOSURE: TEFC
FRAME: 326HP
HERTZ: 60
INSULATION-CLASS: F
KVA-CODE: H
SPEED [rpm]: 3540
OUTPUT [hp]: 50
PHASE: 3
POWER-FACTOR: 89
RATING: 40C AMB-CONT
SERIAL-NUMBER: --
SERVICE FACTOR: 1.15
VOLTAGE: 208-230/460

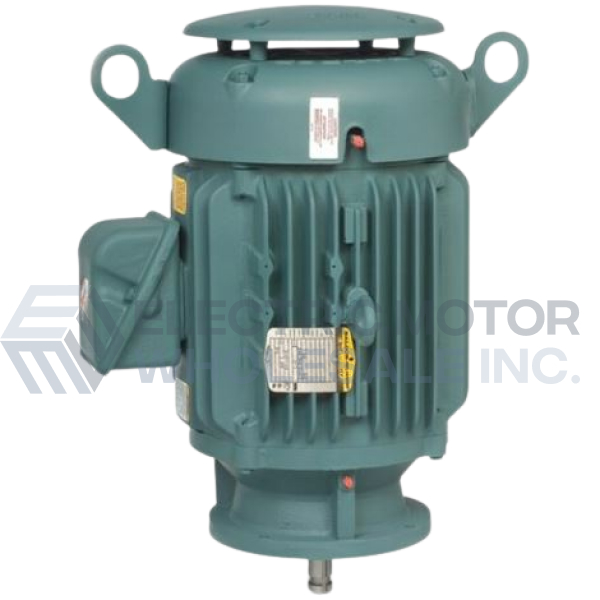

50HP BALDOR 3540RPM 326HP TEFC 3PH MOTOR VHECP4114T
Click Image to Enlarge
Manufacturer Part Number: VHECP4114T
Stock # VHECP4114T
Price: $5,410.00
Compare At: $9,612.00
