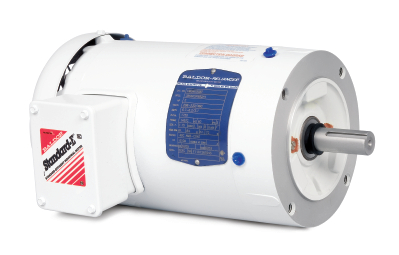

2HP BALDOR 1755RPM 56C TEFC 3PH EPOXY WASHDOWN SUPER-EMOTOR VEWDM3558

2HP BALDOR 1755RPM 56C TEFC 3PH EPOXY WASHDOWN SUPER-EMOTOR VEWDM3558


Part Number:

VEWDM3558

Model/Spec Number:

35S596G073G1

Manufacturer:

ABB/Baldor
VEWDM3558 BALDOR 2HP 3PH SUPER-E EPOXY WASHDOWN MOTOR is designed for use with food processing and other applications where motor is regularly exposed to high pressure wash down.
MSRP: $1,945.00

Regular Price

USD

$

1,397

81

QTY
Login to View Discounts

Free No Rush Shipping

Weight:

46 lbs

Dimensions:

10 x 22 x 10 inches

HS Code:

8501.52.4000

UPC:

781568457610

Technical Details

Brand:

Baldor

Application:

Washdown Epoxy

Output HP:

2

Output KW:

1.5

Output RPM:

1755

Frame Size NEMA:

56C

Mount NEMA:

C Face No Base

Enclosure NEMA:

TEFC

Enclosure IEC:

IP55

Voltage:

230/460

VEWDM3558-InfoPacket.pdf

APPLICATIONS: Designed for use with food processing and other applications where motor is regularly exposed to high pressure wash down.

FEATURES:

  • Moisture sealant on bolt heads, between frame and endplates
  • 5/8" shaft output diameter
  • Neoprene gaskets
  • Double sealed bearings
  • Forsheda® running contact v-ring slinger
  • Stainless steel shaft
  • Electrostatically applied epoxy finish
  • Class F insulation
  • Tropicalized
