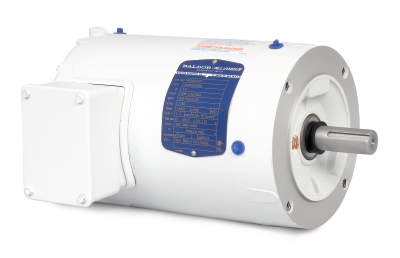

1HP BALDOR 1745RPM 143TC TENV 3PH EPOXY WASHDOWN SUPER-E MOTOR VEWDM3546T

1HP BALDOR 1745RPM 143TC TENV 3PH EPOXY WASHDOWN SUPER-E MOTOR VEWDM3546T


Part Number:

VEWDM3546T

Model/Spec Number:

35SS606Z818G1

Manufacturer:

ABB/Baldor
VEWDM3546T BALDOR 1HP 3PH SUPER-E WASHDOWN EPOXY ELECTRIC MOTOR is designed for use with food processing and other applications where motor is regularly exposed to high pressure wash down.
MSRP: $1,716.00

Regular Price

USD

$

1,233

23

QTY
Login to View Discounts

Free No Rush Shipping

Weight:

40 lbs

Dimensions:

14 x 24 x 14 inches

HS Code:

8501.51.6040

UPC:

781568484692

Technical Details

Brand:

Baldor

Application:

Washdown Epoxy

Output HP:

1

Output KW:

0.75

Output RPM:

1745

Frame Size NEMA:

143TC

Mount NEMA:

C Face No Base

Enclosure NEMA:

TENV

Enclosure IEC:

IP55

Voltage:

230/460

VEWDM3546T-InfoPacket.pdf

APPLICATIONS: Designed for use with food processing and other applications where motor is regularly exposed to high pressure wash down.

FEATURES:

  • Moisture sealant on bolt heads, between frame and endplates
  • Neoprene gaskets
  • Double sealed bearings
  • Forsheda® running contact v-ring slinger
  • Stainless steel shaft
  • Electrostatically applied epoxy finish
  • Class F insulation
  • Tropicalized
