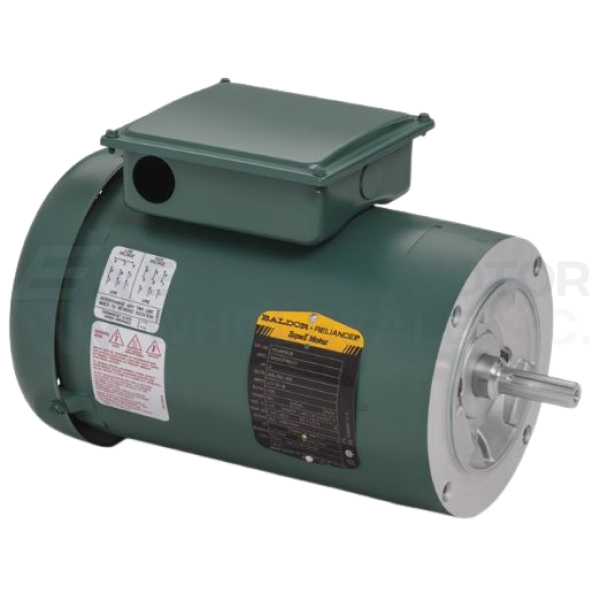

3/4HP BALDOR 1750RPM 56C TEFC 3PH MOTOR VEUHM3542

Catalog Number:  VEUHM3542
Description:  3/4HP,1750RPM,56C,TEFC,3PH,60HZ,UNIT HANDLING
Ship Weight:  35 lbs.

APPLICATIONS: Designed for use with unit and baggage handling, conveyors, packaging equipment, machine tools, hoists, elevators and door operators.

FEATURES:

  • UL/CSA recognized and CE certified
  • CEUHM/VEUHM motors are Super-E® with NEMA Premium® efficiency
  • CUHM/VUHM motors are EPAct efficiency and all are inverter-ready
  • 143-145TY and 143-145TYC frame motors have a special base with 56, 143 and 145 slots used on OEM conveyors
  • 56-140 frames have low profile F3 top-mounted conduit box
  • 3 year warranty on Super-E® motors
SPEC. NUMBER: 35X042P667G1
CATALOG NUMBER: VEUHM3542
FL AMPS: 2.5-2.2/1.1
208V AMPS: --
BEARING-DRIVE-END: 6205
BEARING-OPP-DRIVE-END: 6203
DESIGN CODE: B
DOE-CODE: --
FL EFFICIENCY: 84
ENCLOSURE: TEFC
FRAME: 56C
HERTZ: 60
INSULATION-CLASS: F
KVA-CODE: M
SPEED [rpm]: 1750
OUTPUT [hp]: .75
PHASE: 3
POWER-FACTOR: 73
RATING: 40C AMB-CONT
SERIAL-NUMBER: --
SERVICE FACTOR: 1.15
VOLTAGE: 208-230/460
3/4HP BALDOR 1750RPM 56C TEFC 3PH MOTOR VEUHM3542
Click Image to Enlarge
Image for quick reference only
Manufacturer Part Number: VEUHM3542
Stock # VEUHM3542
Price: $375.00
Compare At: $645.00
