1HP BALDOR 1750RPM 143TC XPFC 3PH MOTOR VEM7014T

Catalog Number:  VEM7014T
Spec Number:  35E380M492G3
Description:  1HP,1765RPM,143TC,XPFC,3PH,SUPER-E,EXPLOSION PROOF
Ship Weight:  51 lbs.

APPLICATIONS: Ideal for wide variety of applications where hazardous fumes or dust may be present.

FEATURES:

  • Corrosion resistant epoxy finish
  • 7/8" Keyed output shaft
  • Three year factory warranty
  • Premium effiecent
  • Positively locked drive end bearing
  • U.L. approved cast conduit box-standard
  • 1.00 Service Factor
  • Class I, Group D, Class II, Group F & G, T3C
SPEC. NUMBER:  35E380M492G3
CATALOG NUMBER:  VEM7014T
FL AMPS:  3/1.5//2.8/1.4
208V AMPS:  3.1
DESIGN CODE:  B
DOE-CODE:  010A
FL EFFICIENCY:  85.5
FRAME:  143TC
HERTZ:  60//50
INSULATION-CLASS:  B
KVA-CODE:  M
SPEED [rpm]:  1760//1460
NAMEPLATE-SERIAL-NUMBER:  --
OUTPUT [hp]:  1//.75
PHASE:  3
POWER-FACTOR:  71
RATING:  40C AMB-CONT
SERIAL-NUMBER:  --
SERVICE FACTOR:  1.00
TEMP. CODE:  T3C
VOLTAGE:  230/460//190/380

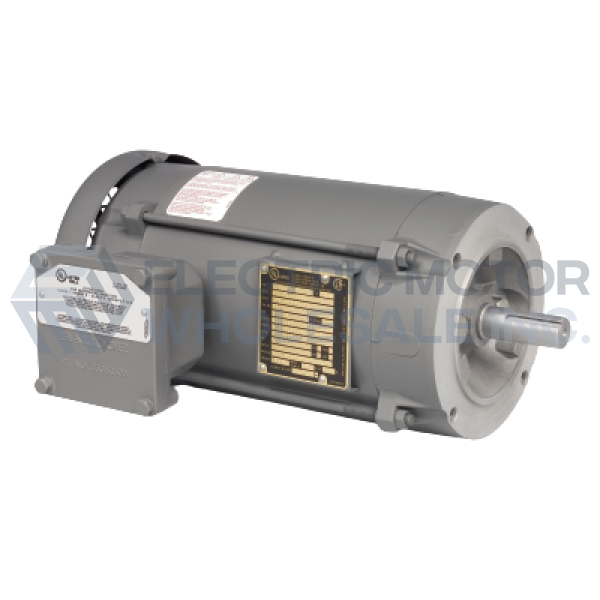

1HP BALDOR 1750RPM 143TC XPFC 3PH MOTOR VEM7014T
Click Image to Enlarge
Image for quick reference only
Manufacturer Part Number: VEM7014T
Stock # VEM7014T
Price: $775.00
Compare At: $1,333.00
