3HP BALDOR 3450RPM 182TC TEFC 3PH MOTOR VEM3610T
| Catalog Number: | VEM3610T |
| Description: | 3HP,3450RPM,182TC,TEFC,3PH,60HZ,SUPER-E |
| Ship Weight: | 50 lbs. |
APPLICATIONS: Typical applications include operations where continuous or frequent duty is required. Super-E Motors are designed to conserve energy over extended time periods. Class F insulated, 1.15 service factor. Inverter rated per NEMA MG1 Part 31.4.4.2. Suitable for variable torque applications and 20:1 constant torque speed range with properly sized and adjusted variable frequency drives.
FEATURES:
- Ball Bearings
- 1 1/8" keyed output shaft
- Suitable for mounting any position
- Heavy gauge steel frames
- ISR® (Inverter Spike Resistant®) copper windings
- Low-loss electrical grade lamination steel
- 3 year warranty
| CATALOG NUMBER: | VEM3610T |
| FL AMPS: | 7.4/3.7 |
| 208V AMPS: | 8 |
| BEARING-DRIVE-END: | 6206 |
| BEARING-OPP-DRIVE-END: | 6205 |
| DESIGN CODE: | B |
| DOE-CODE: | 010A |
| FL EFFICIENCY: | 86.5 |
| ENCLOSURE: | TEFC |
| FRAME: | 182TC |
| HERTZ: | 60 |
| INSULATION-CLASS: | F |
| KVA-CODE: | K |
| SPEED [rpm]: | 3450 |
| OUTPUT [hp]: | 3 |
| PHASE: | 3 |
| POWER-FACTOR: | 91 |
| RATING: | 40C AMB-CONT |
| SERIAL-NUMBER: | -- |
| SERVICE FACTOR: | 1.15 |
| SPEC. NUMBER: | 36A003S041E7 |
| VOLTAGE: | 230/460 |

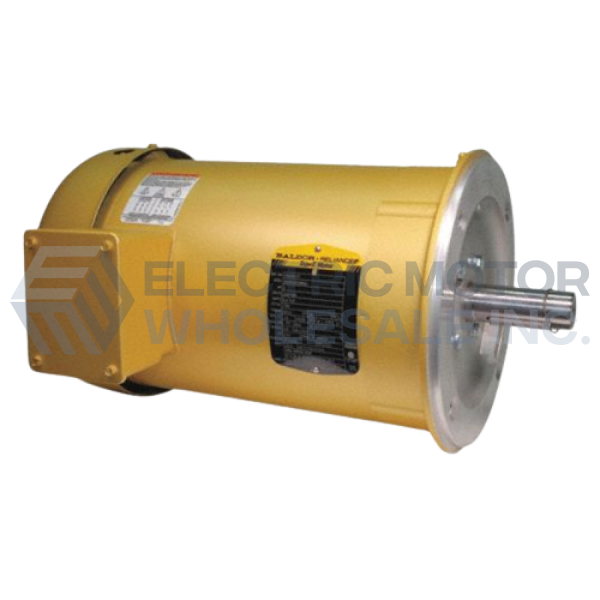

Click Image to Enlarge
Image for quick reference only
Manufacturer Part Number: VEM3610T
Stock # VEM3610T
