3HP BALDOR 1760RPM 182JM TEFC 3PH MOTOR VEJMM3611T

Catalog Number:  VEJMM3611T
Description:  3HP,1760RPM,182JM,TEFC,3PH,60HZ,SUPER-E
Ship Weight:  74 lbs.

APPLICATIONS:  Designed for operations where continuous or frequent duty is required. Usable for a wide variety of applications for circulating and transferring fluids. Mounting designed to support pump unit. Super-E motors are designed to conserve energy over extended time periods.

FEATURES:

  • Super-E Premium Efficient Motor
  • Heavy gauge steel frames
  • Moisture resistant ISR® (Inverter Spike Resistant) copper windings
  • Over-sized ball bearings with locked drive end construction to minimize endplay
  • Low-loss electrical grade lamination steel
  • Three year warranty
SPEC. NUMBER: 36S067S266G1
CATALOG NUMBER: VEJMM3611T
FL AMPS: 9-8.4/4.2
208V AMPS: 9
BEARING-DRIVE-END: 6207
BEARING-OPP-DRIVE-END: 6205
DESIGN CODE: B
DOE-CODE: 010A
FL EFFICIENCY: 89.5
ENCLOSURE: TEFC
FRAME: 182JM
HERTZ: 60
INSULATION-CLASS: F
KVA-CODE: K
SPEED [rpm]: 1760
OUTPUT [hp]: 3
PHASE: 3
POWER-FACTOR: 75
RATING: 40C AMB-CONT
SERIAL-NUMBER: --
SERVICE FACTOR: 1.15
VOLTAGE: 208-230/460
3HP BALDOR 1760RPM 182JM TEFC 3PH MOTOR VEJMM3611T

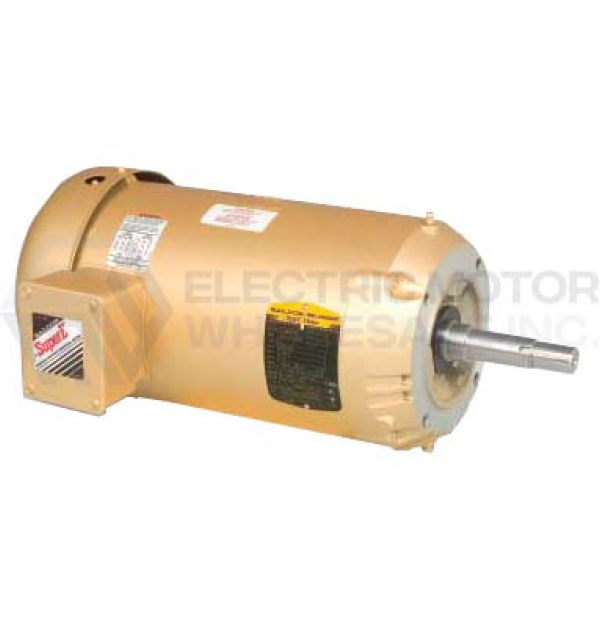

Click Image to Enlarge
Image for quick reference only
Manufacturer Part Number: VEJMM3611T
Stock # VEJMM3611T
Price: $539.00
Compare At: $996.00
