2HP BALDOR 1755RPM 145JM TEFC 3PH MOTOR VEJMM3558T

Catalog Number:  VEJMM3558T
Description:  2HP,1755RPM,145JM,TEFC,3PH,60HZ,SUPER-E
Ship Weight:  44 lbs.

APPLICATIONS:  Designed for operations where continuous or frequent duty is required. Usable for a wide variety of applications for circulating and transferring fluids. Mounting designed to support pump unit. Super-E motors are designed to conserve energy over extended time periods.

FEATURES:

  • Super-E Premium Efficient Motor
  • Heavy gauge steel frames
  • Moisture resistant ISR® (Inverter Spike Resistant) copper windings
  • Over-sized ball bearings with locked drive end construction to minimize endplay
  • Low-loss electrical grade lamination steel
  • Three year warranty
SPEC. NUMBER: 35M317M494G1
CATALOG NUMBER: VEJMM3558T
FL AMPS: 6-5.8/2.9
208V AMPS: --
BEARING-DRIVE-END: 6206
BEARING-OPP-DRIVE-END: 6203
DESIGN CODE: B
DOE-CODE: 010A
FL EFFICIENCY: 86.5
ENCLOSURE: TEFC
FRAME: 145JM
HERTZ: 60
INSULATION-CLASS: F
KVA-CODE: L
SPEED [rpm]: 1755
OUTPUT [hp]: 2
PHASE: 3
POWER-FACTOR: 73
RATING: 40C AMB-CONT
SERIAL-NUMBER: --
SERVICE FACTOR: 1.15
VOLTAGE: 208-230/460

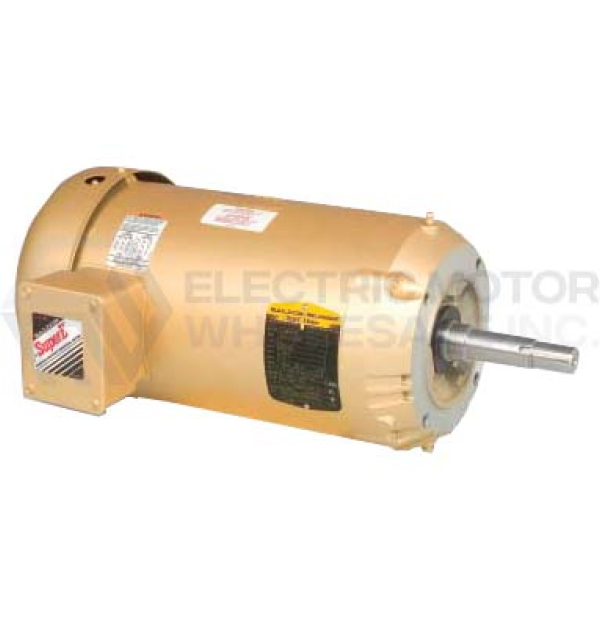

2HP BALDOR 1755RPM 145JM TEFC 3PH MOTOR VEJMM3558T
Click Image to Enlarge
Image for quick reference only
Manufacturer Part Number: VEJMM3558T
Stock # VEJMM3558T
Price: $472.00
Compare At: $873.00
