1HP BALDOR 1760RPM 143TC 3PH TEFC WASHDOWN MOTOR VEFWDM3546T

Catalog Number:  VEFWDM3546T
Description:  1HP,1760RPM,143TC,TEFC,3PH,60HZ,WASHDOWN
Ship Weight:  36 lbs.

APPLICATIONS: Designed for use with food processing and other applications where motor is regularly exposed to high pressure wash down.

FEATURES:

  • Moisture sealant on bolt heads, between frame and endplates
  • Neoprene gaskets
  • Double sealed bearings
  • Forsheda® running contact v-ring slinger
  • Stainless steel shaft
  • Electrostatically applied epoxy finish
  • Class F insulation
  • Tropicalized
SPEC. NUMBER: 35SS605M492G1
CATALOG NUMBER: VEFWDM3546T
FL AMPS: 3.1-3/1.5
208V AMPS: 3.1
BEARING-DRIVE-END: 6205
BEARING-OPP-DRIVE-END: 6203
DESIGN CODE: B
DOE-CODE: 010A
FL EFFICIENCY: 85.5
ENCLOSURE: TEFC
FRAME: 143TC
HERTZ: 60
INSULATION-CLASS: F
KVA-CODE: L
SPEED [rpm]: 1760
OUTPUT [hp]: 1
PHASE: 3
POWER-FACTOR: 71
RATING: 40C AMB-CONT
SERIAL-NUMBER: --
SERVICE FACTOR: 1.15
VOLTAGE: 208-230/460

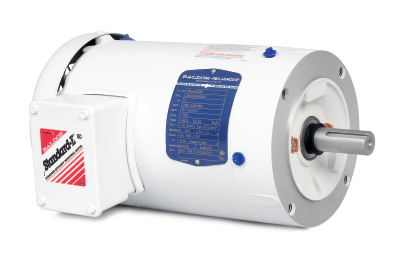

1HP BALDOR 1760RPM 143TC 3PH TEFC WASHDOWN MOTOR VEFWDM3546T
Click Image to Enlarge
Image for quick reference only
Manufacturer Part Number: VEFWDM3546T
Stock # VEFWDM3546T
Price: $603.00
Compare At: $1,070.00
Quantity:
