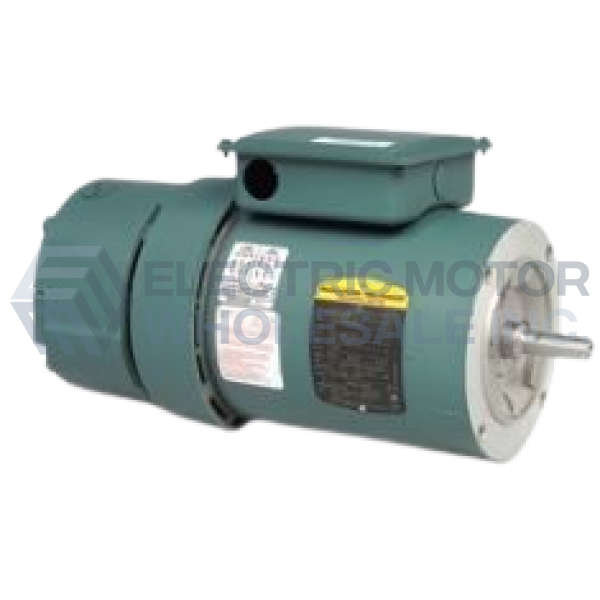

1.5HP BALDOR 1755RPM 56C TEFC 3PH D-SERIES BRAKEMOTOR VBM3554-D

1.5HP BALDOR 1755RPM 56C TEFC 3PH D-SERIES BRAKEMOTOR VBM3554-D


Part Number:

VBM3554-D

Model/Spec Number:

35X145Z541H1

Manufacturer:

Baldor Obsolete Motors
VBM3554-D BALDOR 1.5HP D-Series Brake Motor is designed for use with unit and baggage handling, conveyors, packaging equipment, machine tools, hoists, elevators and door operators.

Item Discontinued

Click below to view suggested functional replacement.
See Replacement Item

Weight:

58 lbs

Dimensions:

10 x 18 x 10 inches

HS Code:

8501.52.4000

UPC:

781568444320

Technical Details

Application:

Brakemotor

Output HP:

1.5

Output KW:

1.1

Output RPM:

1755

Frame Size NEMA:

56C

Mount NEMA:

C Face No Base

Enclosure NEMA:

TEFC

Enclosure IEC:

IP44

Voltage:

208-230/460

Frequency (Hz):

60

VBM3554-D-InfoPacket

APPLICATIONS: Designed for use with unit and baggage handling, conveyors, packaging equipment, machine tools, hoists, elevators and door operators.

FEATURES:

  • UL/CSA recognized and CE certified
  • Dodge “D” Series brakes are spring set
  • Brakes are single phase with built-in rectifier to DC
  • Brakes have a manual release lever
  • 56-140 frames have low profile F3 top-mounted conduit box
  • D series brake motors can be universally mounted
  • Inverter ready
  • 143-145TY and 143-145TYC frame motors have a special base with 56, 143 and 145 slots used on OEM conveyors
  • 2 year warranty
