1HP BALDOR 1750RPM 143TC TEFC 3PH D-SERIES BRAKEMOTOR VBM3546T-D

1HP BALDOR 1750RPM 143TC TEFC 3PH D-SERIES BRAKEMOTOR VBM3546T-D

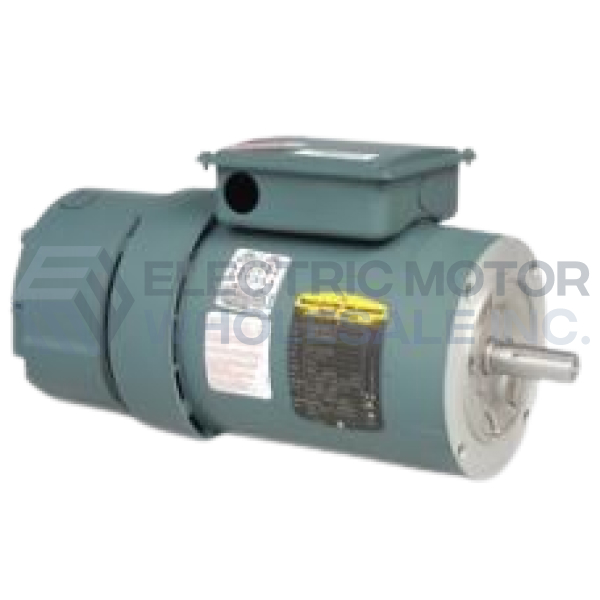

Picture is for reference only.

Part Number:

VBM3546T-D

Model/Spec Number:

35X050P674H1

Manufacturer:

Baldor Obsolete Motors
VBM3546T-D BALDOR 1HP D-Series Brake Motor is designed for use with unit and baggage handling, conveyors, packaging equipment, machine tools, hoists, elevators and door operators.

Item Discontinued

Click below to view suggested functional replacement.
See Replacement Item

Weight:

49 lbs

Dimensions:

10 x 18 x 10 inches

HS Code:

8501516040

UPC:

781568444313

Technical Details

Brand:

Baldor

Application:

Brakemotor

Output HP:

1

Output KW:

0.75

Output RPM:

1750

Frame Size NEMA:

143TC

Mount NEMA:

C Face No Base

Enclosure NEMA:

TEFC

Enclosure IEC:

IP44

Voltage:

208-230/460

VBM3546T-D-InfoPacket

APPLICATIONS: Designed for use with unit and baggage handling, conveyors, packaging equipment, machine tools, hoists, elevators and door operators.

FEATURES:

  • UL/CSA recognized and CE certified
  • Dodge “D” Series brakes are spring set
  • Brakes are single phase with built-in rectifier to DC
  • Brakes have a manual release lever
  • 56-140 frames have low profile F3 top-mounted conduit box
  • D series brake motors can be universally mounted
  • Inverter ready
  • 143-145TY and 143-145TYC frame motors have a special base with 56, 143 and 145 slots used on OEM conveyors
  • 2 year warranty
