1HP BALDOR 1750RPM 56C TEFC 575V 3PH SHORT SERIES BRAKEMOTOR VBM3546-5S

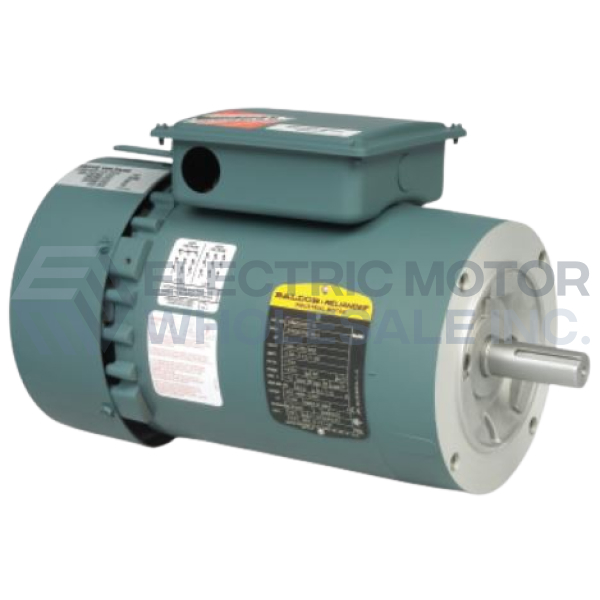

Picture is for reference only.

Part Number:

VBM3546-5S

Model/Spec Number:

35X055M295H2

Manufacturer:

Baldor Obsolete Motors

VBM3546-5S BALDOR 1HP Short Series Brake Motor is designed for use with unit and baggage handling, conveyors, packaging equipment, hoists, elevators and door operators.

Item Discontinued

Click below to view suggested functional replacement.

See Replacement Item

Shipping Details

Weight:

35 lbs

Dimensions:

12 x 20 x 12 inches

HS Code:

8501516040

UPC:

781568503232

Technical Details

Specifications

Brand:	Baldor
Application:	Brakemotor
Output HP:	1
Output KW:	0.75
Output RPM:	1750
Frame Size NEMA:	56C
Mount NEMA:	C Face No Base
Enclosure NEMA:	TEFC
Enclosure IEC:	IP22
Voltage:	575

Documentation

VBM3546-5S-InfoPacket

Additional Information

APPLICATIONS: Designed for use with unit and baggage handling, conveyors, packaging equipment, machine tools, hoists, elevators and door operators.

FEATURES:

UL/CSA recognized and CE certified
Dodge “D” Series brakes are spring set
Brakes are single phase with built-in rectifier to DC
Brakes have a manual release lever
56-140 frames have low profile F3 top-mounted conduit box
D series brake motors can be universally mounted
Inverter ready
143-145TY and 143-145TYC frame motors have a special base with 56, 143 and 145 slots used on OEM conveyors
2 year warranty
