1.5-3HP BALDOR 3450RPM 145TZ OPAO 1PH MOTOR UCL153

2 IN STOCK
Catalog Number:  UCL153
Description:  1.5-3HP,3450RPM,145TZ,OPAO,1PH,60HZ,GRAIN DRYER
Ship Weight:  52 lbs.

APPLICATIONS: Specifically engineered for use on vane axial fan crop dryers.

FEATURES:

  • Shaft 3/4" longer than NEMA standard
  • Shaft keyed, drilled and tapped with internal 1/4-20 tap 1" deep
  • 1.00 Service Factor
  • Thermostats
  • Epoxy paint
VOLTAGE: 230
SERVICE FACTOR: 1.00
SERIAL-NUMBER: --
RATING: 40C AMB-CONT
POWER-FACTOR: 94
PHASE: 1
OUTPUT [hp]: 1.5-3 AIR OVER
SPEED [rpm]: 3450
KVA-CODE: G
INSULATION-CLASS: F
HERTZ: 60
FRAME: 145TZ
ENCLOSURE: OPAO
FL EFFICIENCY: 77
DOE-CODE: --
DESIGN CODE: L
BEARING-OPP-DRIVE-END: 6203
BEARING-DRIVE-END: 6206
208V AMPS: 15
FL AMPS: 13.6
CATALOG NUMBER: UCL153
SPEC. NUMBER: 35T926Y458G1
VOLTAGE: 230
SERVICE FACTOR: 1.00
SERIAL-NUMBER: --
RATING: 40C AMB-CONT
POWER-FACTOR: 94
PHASE: 1
OUTPUT [hp]: 1.5-3 AIR OVER
SPEED [rpm]: 3450
KVA-CODE: G
INSULATION-CLASS: F
HERTZ: 60
FRAME: 145TZ
ENCLOSURE: OPAO
FL EFFICIENCY: 77
DOE-CODE: --
DESIGN CODE: L
BEARING-OPP-DRIVE-END: 6203
BEARING-DRIVE-END: 6206
208V AMPS: 15
FL AMPS: 13.6
CATALOG NUMBER: UCL153
SPEC. NUMBER: 35T926Y458G1

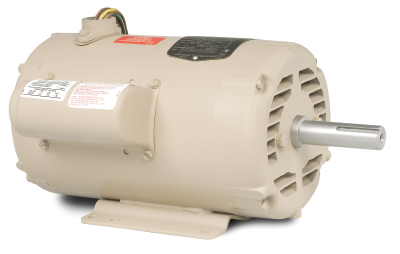

1.5-3HP BALDOR 3450RPM 145TZ OPAO 1PH MOTOR UCL153
Click Image to Enlarge
Image for quick reference only
Manufacturer Part Number: UCL153
Stock # UCL153
