7.5-9.2HP BALDOR 3450RPM 184TZ TEAO 1PH MOTOR UCCE759

BALDOR Catalog Number:  UCCE759
Description:  7.5-9.2HP,3450RPM,184TZ,TEAO,1PH,60HZ,FARM DUTY
Ship Weight:  91 lbs.

APPLICATIONS: Specifically engineered for use on vane axial fan crop dryers.

FEATURES:

  • TEAO design prevents entrance of rodents, insects and other foreign matter
  • High full load efficiency for reduced operating cost
  • No mechanical switch to wear
  • No noise and vibration from regeneration
  • Less sensitive to voltage variations
  • Soft start
  • Thermostats
  • Epoxy paint
  • 1.00 Service Factor
VOLTAGE: 230
SERVICE FACTOR: 1.00
SERIAL-NUMBER: --
RATING: 40C AMB-CONT
POWER-FACTOR: 95
PHASE: 1
OUTPUT [hp]: 7.5-9.2 AIR OVER
SPEED [rpm]: 3450
KVA-CODE: F
INSULATION-CLASS: F
HERTZ: 60
FRAME: 184TZ
ENCLOSURE: TEAO
FL EFFICIENCY: 85.5
DOE-CODE: --
DESIGN CODE: -
BEARING-OPP-DRIVE-END: 6205
BEARING-DRIVE-END: 6206
208V AMPS: --
FL AMPS: 29-35
CATALOG NUMBER: UCCE759
SPEC. NUMBER: 36F545W853
VOLTAGE: 230
SERVICE FACTOR: 1.00
SERIAL-NUMBER: --
RATING: 40C AMB-CONT
POWER-FACTOR: 95
PHASE: 1
OUTPUT [hp]: 7.5-9.2 AIR OVER
SPEED [rpm]: 3450
KVA-CODE: F
INSULATION-CLASS: F
HERTZ: 60
FRAME: 184TZ
ENCLOSURE: TEAO
FL EFFICIENCY: 85.5
DOE-CODE: --
DESIGN CODE: -
BEARING-OPP-DRIVE-END: 6205
BEARING-DRIVE-END: 6206
208V AMPS: --
FL AMPS: 29-35
CATALOG NUMBER: UCCE759
SPEC. NUMBER: 36F545W853
7.5-9.2HP BALDOR 3450RPM 184TZ TEAO 1PH MOTOR UCCE759

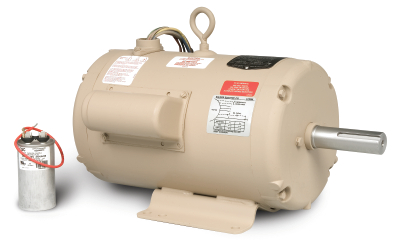

Click Image to Enlarge
Image for quick reference only
Manufacturer Part Number: UCCE759
Stock # UCCE759
Price: $788.00
Compare At: $1,394.00
