7.5-10.5HP BALDOR 3450RPM 215Z TEAO 1PH MOTOR UCCE7510

BALDOR Catalog Number:  UCCE7510
Description:  7.5-10.5HP,3450RPM,215Z,TEAO,1PH,60HZ,FARM DUTY
Ship Weight:  108 lbs.

APPLICATIONS: Specifically engineered for use on vane axial fan crop dryers.

FEATURES:

  • TEAO design prevents entrance of rodents, insects and other foreign matter
  • High full load efficiency for reduced operating cost
  • No mechanical switch to wear
  • No noise and vibration from regeneration
  • Less sensitive to voltage variations
  • Soft start
  • Thermostats
  • Epoxy paint
  • 1.00 Service Factor
VOLTAGE: 230
SERVICE FACTOR: 1.00
SERIAL-NUMBER: --
RATING: 40C AMB-CONT
POWER-FACTOR: 98
PHASE: 1
OUTPUT [hp]: 7.5-10.5 AIR OVER
SPEED [rpm]: 3450
KVA-CODE: C
INSULATION-CLASS: F
HERTZ: 60
FRAME: 215Z
ENCLOSURE: TEAO
FL EFFICIENCY: 84
DOE-CODE: --
DESIGN CODE: -
BEARING-OPP-DRIVE-END: 6206
BEARING-DRIVE-END: 6307
208V AMPS: --
FL AMPS: 30-40
CATALOG NUMBER: UCCE7510
SPEC. NUMBER: 37E763W934
VOLTAGE: 230
SERVICE FACTOR: 1.00
SERIAL-NUMBER: --
RATING: 40C AMB-CONT
POWER-FACTOR: 98
PHASE: 1
OUTPUT [hp]: 7.5-10.5 AIR OVER
SPEED [rpm]: 3450
KVA-CODE: C
INSULATION-CLASS: F
HERTZ: 60
FRAME: 215Z
ENCLOSURE: TEAO
FL EFFICIENCY: 84
DOE-CODE: --
DESIGN CODE: -
BEARING-OPP-DRIVE-END: 6206
BEARING-DRIVE-END: 6307
208V AMPS: --
FL AMPS: 30-40
CATALOG NUMBER: UCCE7510
SPEC. NUMBER: 37E763W934

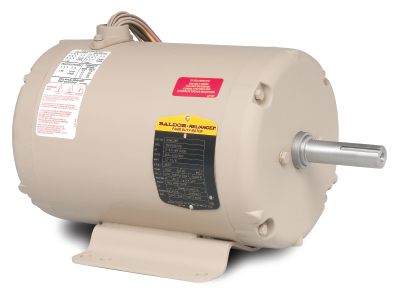

7.5-10.5HP BALDOR 3450RPM 215Z TEAO 1PH MOTOR UCCE7510
Click Image to Enlarge
Image for quick reference only
Manufacturer Part Number: UCCE7510
Stock # UCCE7510
Price: $990.00
Compare At: $1,755.00
