3-4.5HP BALDOR 3450RPM 184Z TEAO 1PH MOTOR UCCE345

3-4.5HP BALDOR 3450RPM 184Z TEAO 1PH MOTOR UCCE345

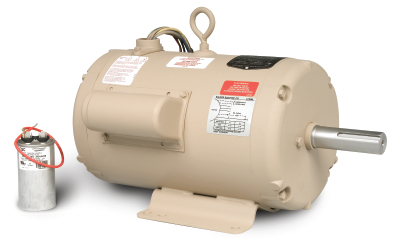

Picture is for reference only.

Part Number:

UCCE345

Model/Spec Number:

36F546W845

Manufacturer:

Baldor Obsolete Motors
UCCE345 BALDOR 3-4.5HP Universal Crop Dryer Motor designed specifically engineered for use on vane axial fan crop dryers.

Item Discontinued

Click below to request an agent review potential options.

Weight:

75 lbs

Dimensions:

16 x 26 x 18 inches

HS Code:

8501.40.6040

UPC:

781568122303

Technical Details

Application:

Grain Dryer

Output HP:

3-4.5

Output KW:

2.2-3.4

Output RPM:

3450

Frame NEMA:

184Z

Mount NEMA:

Base Mount

Enclosure NEMA:

TEAO

Enclosure IEC:

IP54

Voltage:

230

Frequency (Hz):

60

UCCE345-InfoPacket

APPLICATIONS: Specifically engineered for use on vane axial fan crop dryers.

FEATURES:

  • TEAO design prevents entrance of rodents, insects and other foreign matter
  • High full load efficiency for reduced operating cost
  • No mechanical switch to wear
  • No noise and vibration from regeneration
  • Less sensitive to voltage variations
  • Soft start
  • Thermostats
  • 1.00 Service Factor
