13HP BALDOR 3450RPM 215Z TEAO 1PH MOTOR UCCE130

BALDOR Catalog Number:  UCCE130
Description:  13HP,3450RPM,215Z,TEAO,1PH,60HZ,FARM DUTY
Ship Weight:  137 lbs.

APPLICATIONS: Specifically engineered for use on vane axial fan crop dryers.

FEATURES:

  • TEAO design prevents entrance of rodents, insects and other foreign matter
  • High full load efficiency for reduced operating cost
  • No mechanical switch to wear
  • No noise and vibration from regeneration
  • Less sensitive to voltage variations
  • Soft start
  • Thermostats
  • 1.00 Service Factor
VOLTAGE: 230
SERVICE FACTOR: 1.00
SERIAL-NUMBER: --
RATING: 40C AMB-CONT
POWER-FACTOR: 97
PHASE: 1
OUTPUT [hp]: 13 AIR OVER
SPEED [rpm]: 3450
KVA-CODE: F
INSULATION-CLASS: F
HERTZ: 60
FRAME: 215Z
ENCLOSURE: TEAO
FL EFFICIENCY: 85
DOE-CODE: --
DESIGN CODE: -
BEARING-OPP-DRIVE-END: 6206
BEARING-DRIVE-END: 6307
208V AMPS: --
FL AMPS: 50
CATALOG NUMBER: UCCE130
SPEC. NUMBER: 37E763W935
VOLTAGE: 230
SERVICE FACTOR: 1.00
SERIAL-NUMBER: --
RATING: 40C AMB-CONT
POWER-FACTOR: 97
PHASE: 1
OUTPUT [hp]: 13 AIR OVER
SPEED [rpm]: 3450
KVA-CODE: F
INSULATION-CLASS: F
HERTZ: 60
FRAME: 215Z
ENCLOSURE: TEAO
FL EFFICIENCY: 85
DOE-CODE: --
DESIGN CODE: -
BEARING-OPP-DRIVE-END: 6206
BEARING-DRIVE-END: 6307
208V AMPS: --
FL AMPS: 50
CATALOG NUMBER: UCCE130
SPEC. NUMBER: 37E763W935

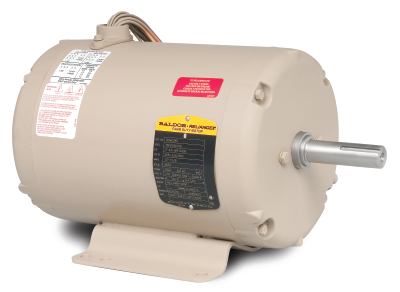

13HP BALDOR 3450RPM 215Z TEAO 1PH MOTOR UCCE130
Click Image to Enlarge
Image for quick reference only
Manufacturer Part Number: UCCE130
Stock # UCCE130
Price: $1,250.00
Compare At: $2,216.00
